Storage-bed & ottoman-bed gas springs

Identify replacement supports for lift-up storage beds from the original strut and hinge mechanism. Send the printed force, mounting centres, fitting sizes and the quantity required for a matched quotation.

Identify my bed support Send a parts list

Matching product family: Compression gas springs →

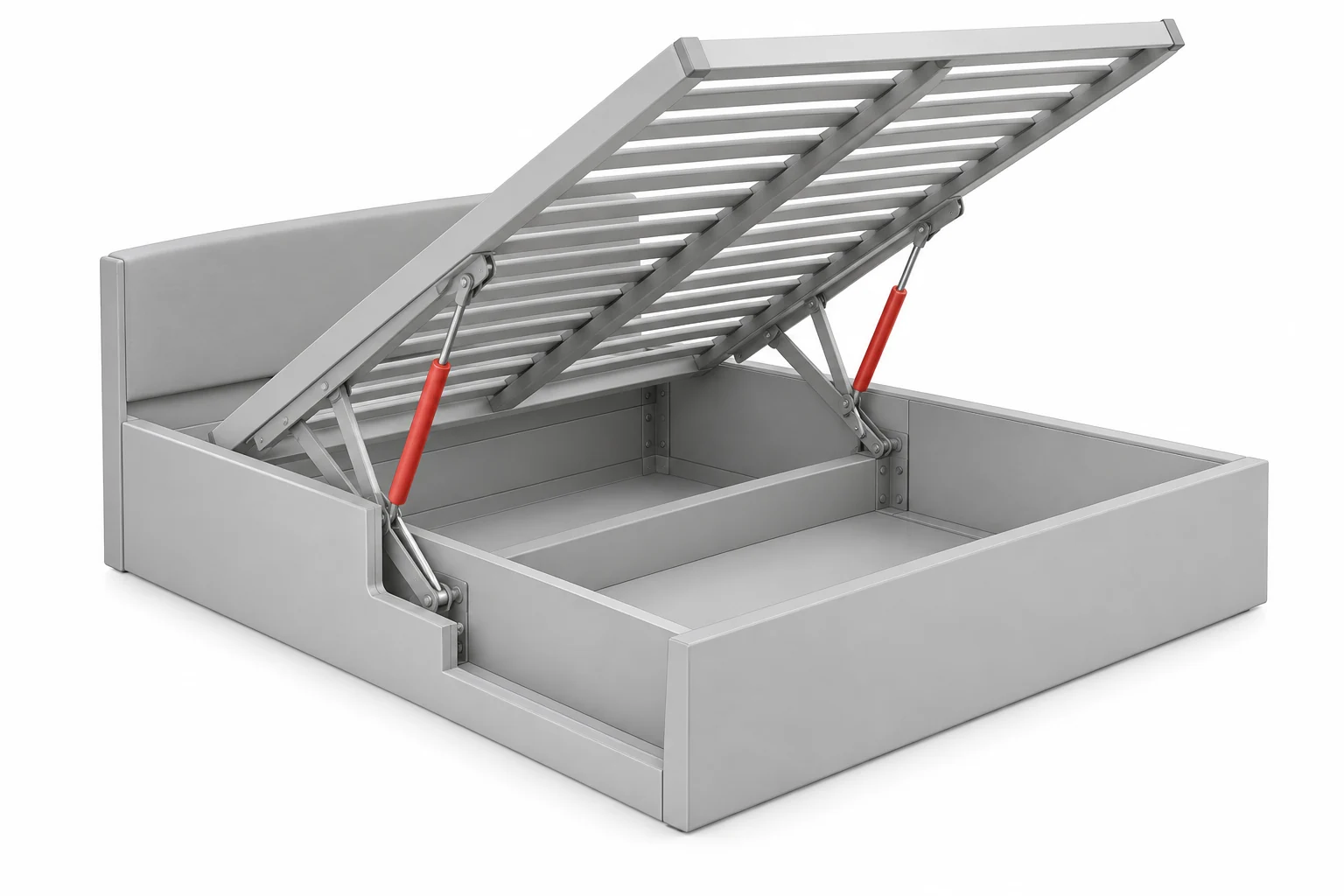

Storage & ottoman beds — full furniture model with gas spring position highlighted in red
APPLICATION MODEL · Red highlights the gas spring position. Mounting layout varies by mechanism.
WHERE IT WORKS

Between the fixed bed base and the moving lift mechanism or mattress frame.

Assists lifting the mattress platform to access storage. The hinge mechanism controls its path; the gas spring works within that mechanism.

Compression gas springs →

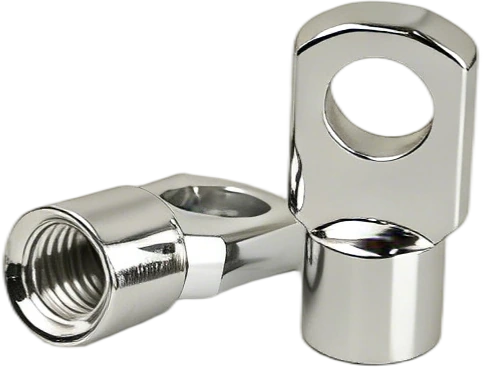

Threaded eyelet end fittings for gas spring pivot mounting
Connection detail: threaded eyelet end fittings. Match the pivot bore, thread, width and mounting-centre reference.

End-opening ottoman beds

The mattress platform opens from the foot of the bed.

Side-opening storage beds

A side lift changes the pivot, lever arm and mounting arrangement.

Replacement pairs

Identify the fitted spring on each side and any left/right mechanism differences before ordering.

SEND THE RIGHT INFORMATION

A useful parts list starts here.

Use the original marking or a drawing wherever possible. Measurements may be supplied in millimeters or inches.

Gas spring mounting lengths: fully extended L1, fully compressed L2 and stroke S equals L1 minus L201 / MEASUREMENTExtended and compressed lengthMOUNTING CENTER TO MOUNTING CENTERFULLY EXTENDEDL1 / Extended lengthFULLY COMPRESSEDL2 / Compressed lengthSTROKES = L1 - L2Use the same mounting references in both positions.Schematic. The short rod neck and end-fitting geometry depend on the actual assembly.
Dimension guide for a separate gas spring. Use the approved mechanism or column drawing when matching a complete assembly.
01

Existing support

Part code, force marking in N, a full-unit photograph and both mounting ends.

02

Mounting dimensions

Extended mounting-centre length, documented stroke and eye or pin dimensions.

03

Moving load

Frame and mattress information together with bed size and opening direction.

04

Mechanism & quantity

Photographs of the hinge plates and springs in position; springs per bed and order quantity.

Bed size alone does not determine spring force. A storage-bed mechanism and a foldaway wall-bed mechanism have different geometry and must be matched separately.

MATCH YOUR EXISTING PART

Have the old bed support?

Send its complete marking and mounting details. We will use that information to prepare the matching quotation.

Close-up of a gas spring eyelet end connection showing the pivot bore
Include both end connections and their pin or bore dimensions.

One item. The details needed to quote.

  • Original code and force marking
  • Extended mounting-centre length and documented stroke
  • Eye, pin or ball dimensions at each end
  • Bed mechanism photos and required quantity

This page does not assign a universal force to a bed size. The original mechanism and fitted spring determine the matching requirement.

Send my bed-support details
FROM IDENTIFICATION TO SUPPLY

Keep the specification with every order.

Reference and quantity → matched dimensions, fittings and release arrangement → agreed specification for the quotation and repeat order.
