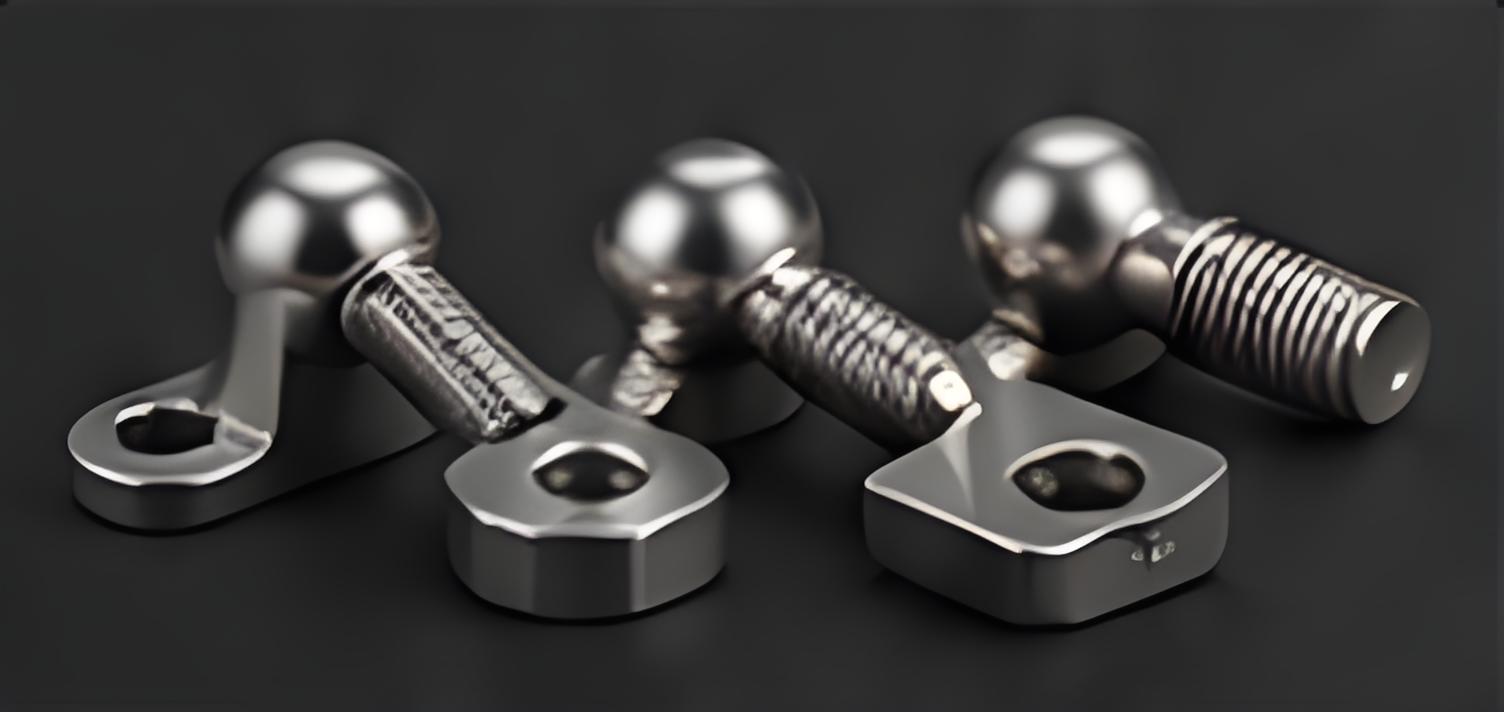

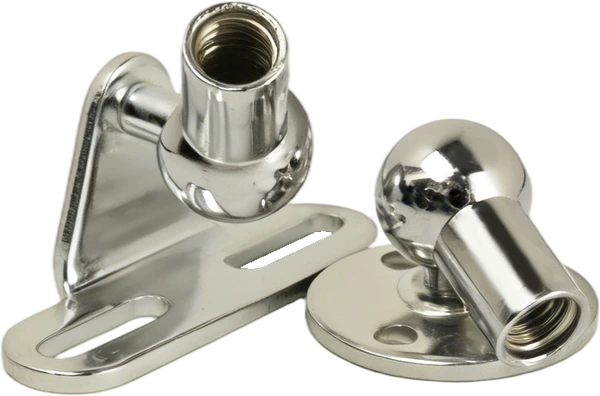

FITTING VIEW 01
Ball sockets & slotted brackets
Ball diameter · thread · slot spacing · ball-center offset
Quote this connection →END FITTINGS & BRACKETS

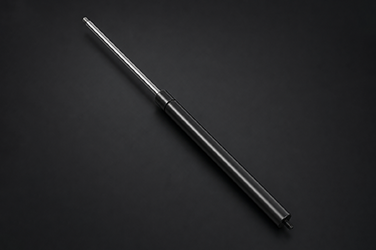

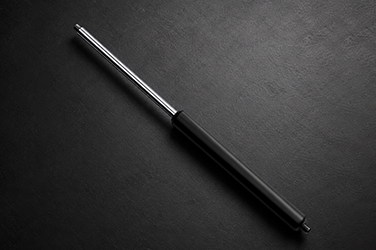

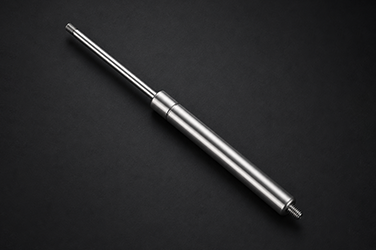

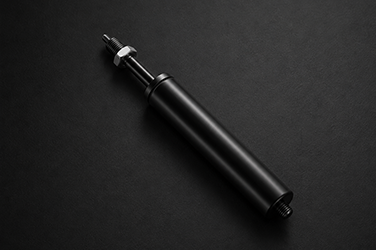

The connection is part of the product.
Compare ball sockets, eyelets, clevis ends and mounting brackets. Specify both ends of the assembly so the supplied gas spring connects correctly.
VISUAL FITTING GUIDE
Find the shape. Confirm the dimensions.
View numbers identify photographs in this guide. They are not part numbers. Select a view and include the required dimensions with your inquiry.

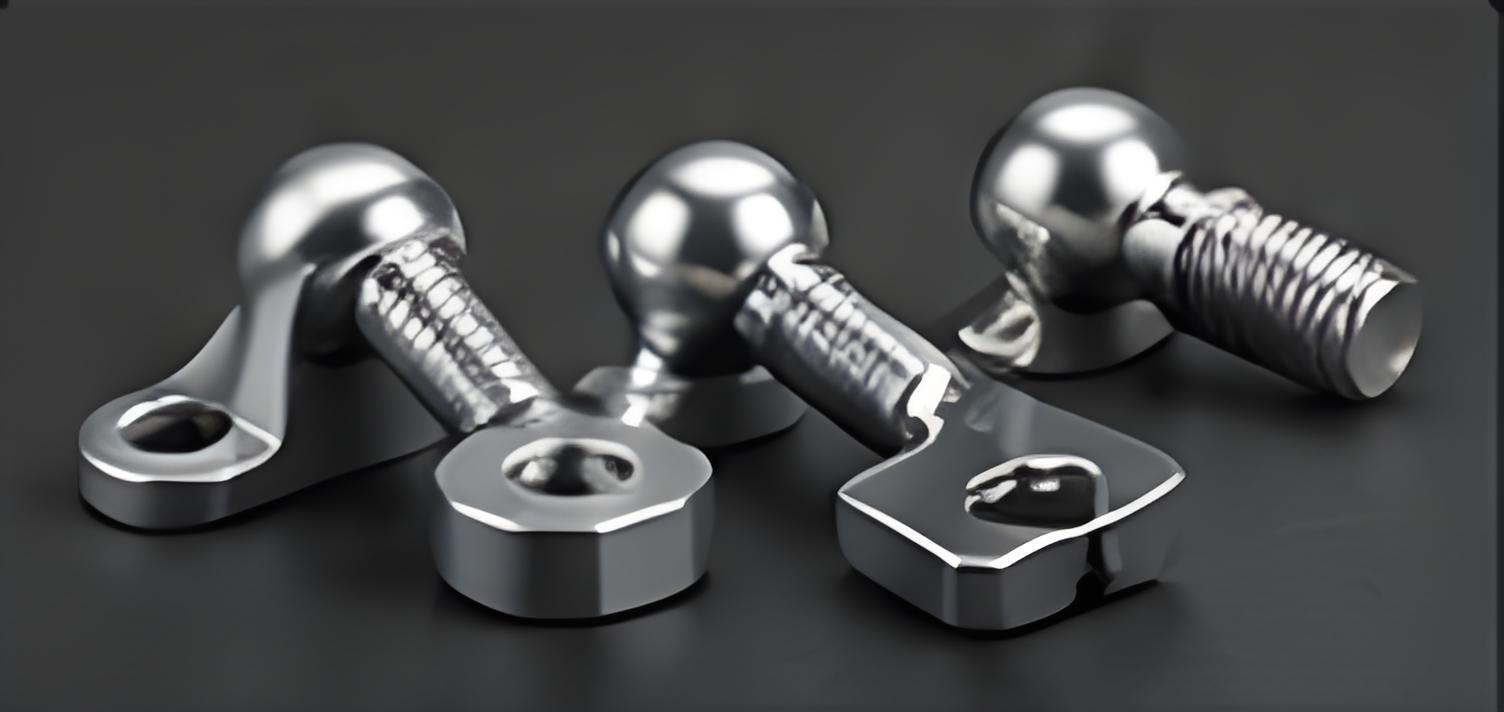

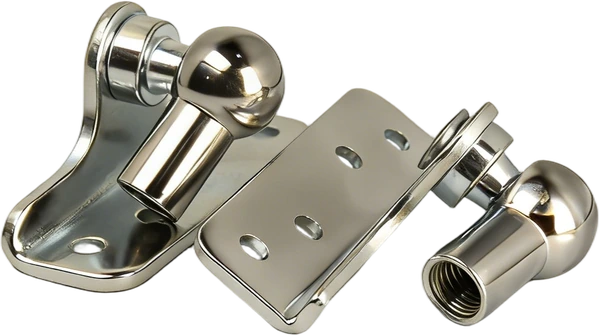

FITTING VIEW 02
Ball sockets & base brackets
Ball diameter · thread · mounting-hole pattern
Quote this connection →FITTING VIEW 03
Ball sockets & threaded studs
Ball diameter · socket thread · stud thread · retention

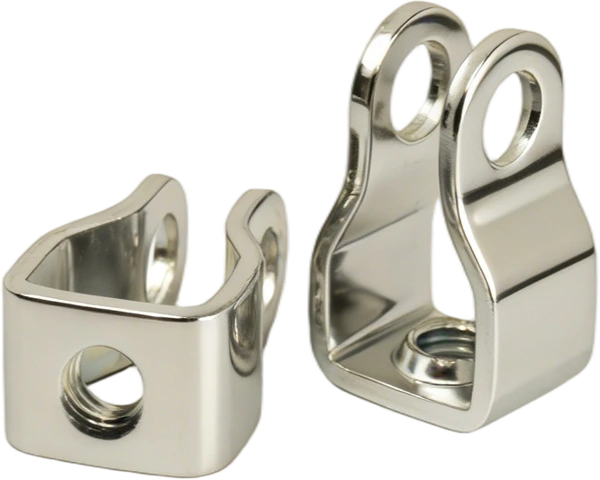

Quote this connection →FITTING VIEW 04
Threaded clevis ends
Pin hole · inside width · thread · center length
Quote this connection →

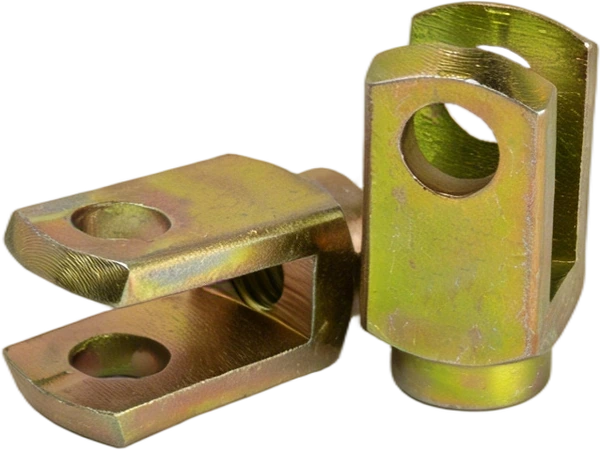

FITTING VIEW 05
Clevis ends
Pin hole · inside width · thread · finish requirement
Quote this connection →

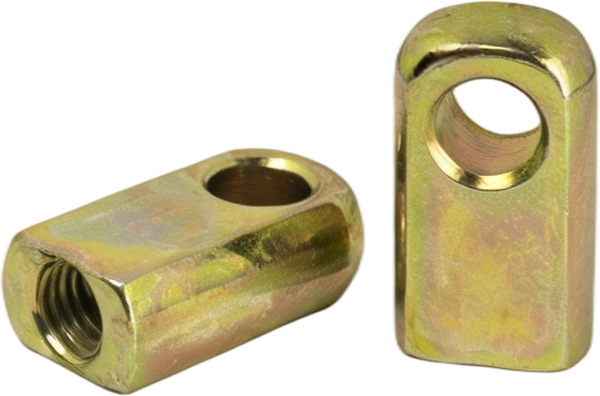

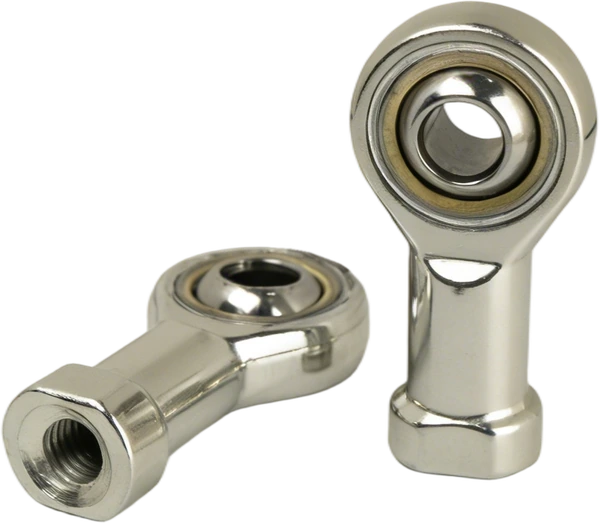

FITTING VIEW 07
Bearing rod ends
Bearing bore · width · thread · movement requirement
Quote this connection →

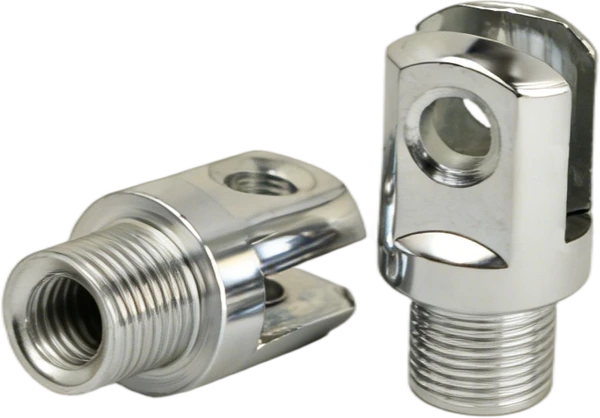

FITTING VIEW 08
Male-thread clevis ends
Male thread · pin hole · inside width · center length
Quote this connection →

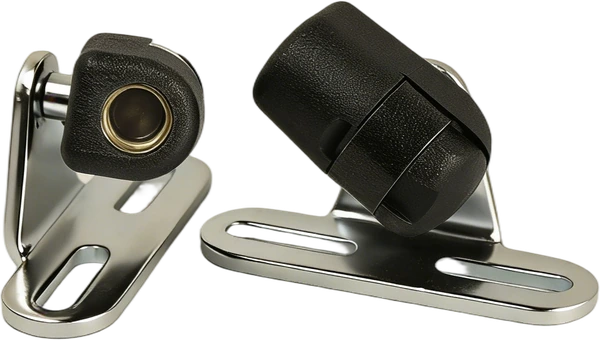

FITTING VIEW 10
Eye-end bracket assemblies
Bore · mounting slots · pivot orientation
Quote this connection →

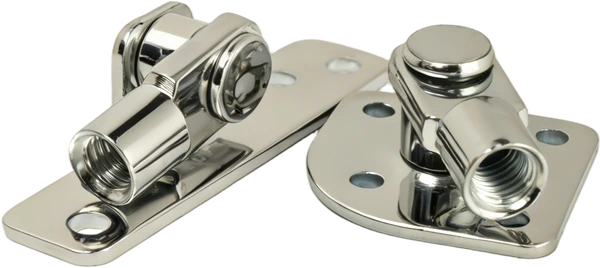

FITTING VIEW 11
Pivot bracket assemblies
Thread · base hole pattern · pivot offset
Quote this connection →

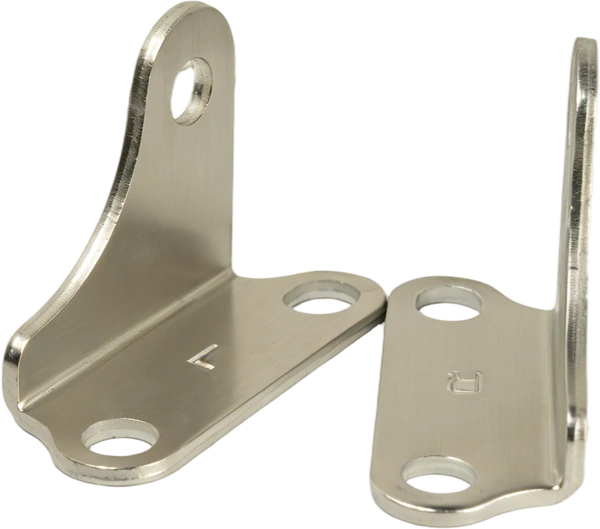

FITTING VIEW 12
Angle mounting brackets
Pin hole · mounting holes · mounting-face offset
Quote this connection →

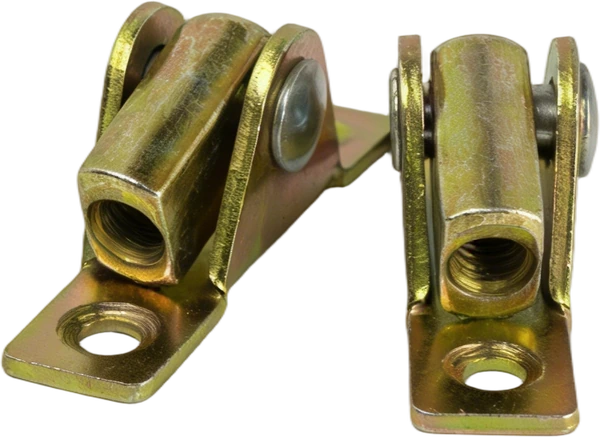

FITTING VIEW 13
Clevis base brackets
Pivot pin · mounting holes · bracket width
Quote this connection →

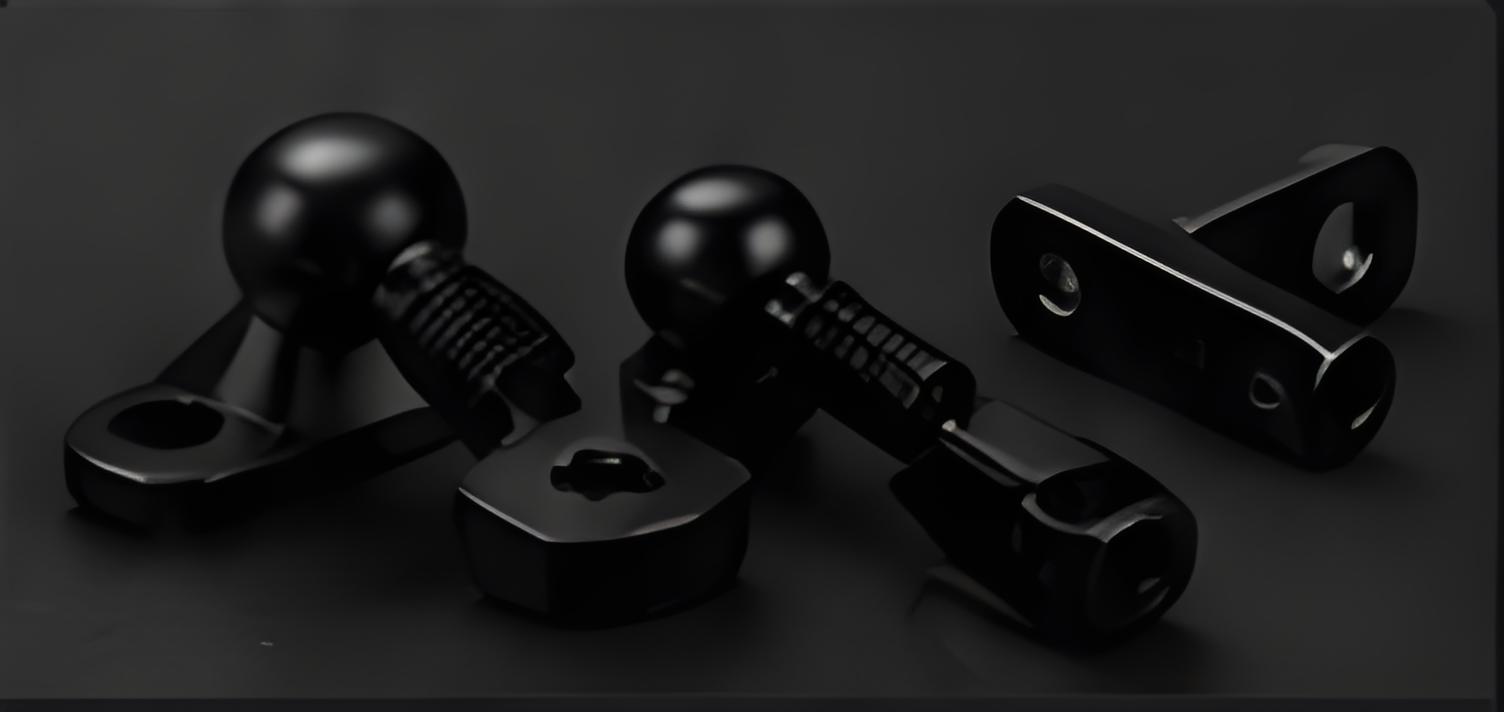

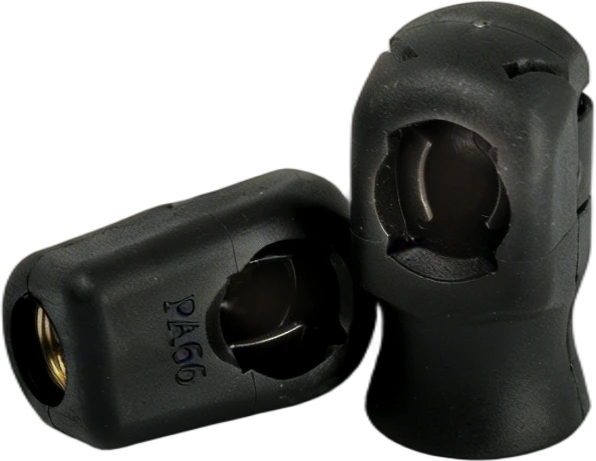

FITTING VIEW 14
Black ball-socket ends
Ball diameter · female thread · retaining feature
Quote this connection →

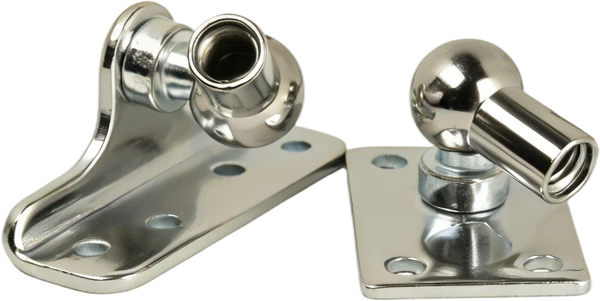

FITTING VIEW 15
Ball-socket bracket sets
Ball diameter · thread · mounting pattern · offset
Quote this connection →GET THE INTERFACE RIGHT
Four checks before ordering.

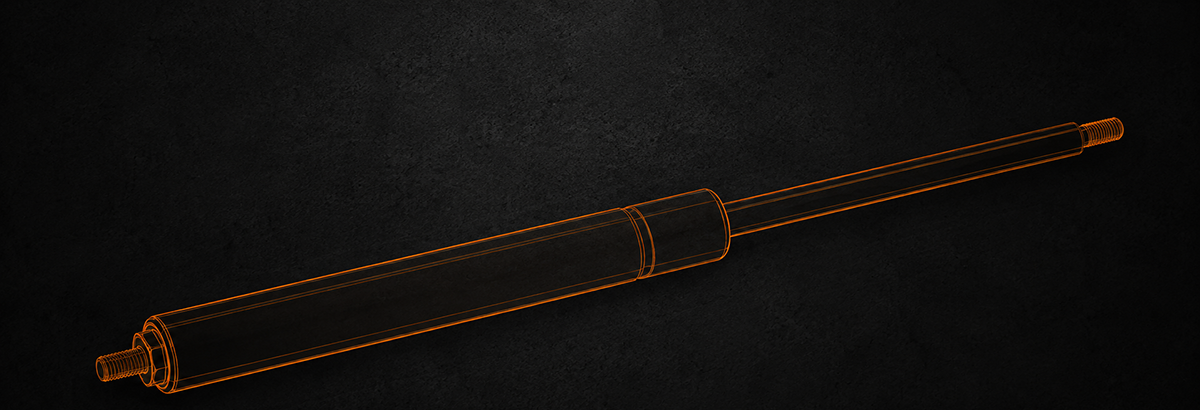

Connection thread
Specify diameter, pitch, male/female form and usable engagement.
Pivot interface
Record ball diameter, bore diameter or clevis pin size and width.
Mounting reference
Include center-to-shoulder length, hole spacing and bracket offset.
Orientation & clearance
Check both ends and surrounding movement space throughout travel.
MATCHING DETAILS
Match the full connection, including the retained parts.
| Connection detail | What to match |
|---|---|
| Spring-side thread | Diameter, pitch, engagement length and the intended rod-side or tube-side connection. |
| Ball socket & stud | Ball geometry, socket retention, stud thread and which stud or retaining components are included. |
| Eyelet / clevis | Bore or pin diameter, inside / outside width, clearance, pin and retaining arrangement. |
| Mounting bracket | Hole pattern, offset, fastener arrangement and the supporting structure. |
| Assembled length | Check the mounting-center dimension after fitting both ends. A different connector can change the installed length. |
| Material & finish | Identify each connection, bracket and fastener. Match them to the working environment. |
Joint movement and compatibility checks
Closed / middle / open
Check articulation at all three positions, including clearance around the socket, pin and neighboring parts.
No forced alignment
A joint should not force the rod sideways or use the gas spring to correct bracket misalignment.
Retention and load
Identify the required pins and clips explicitly. A stronger gas spring does not establish that an existing bracket has adequate capacity.
YOUR NEXT STEP
Need a complete gas spring and fitting set?
Send a photo of each end, the part marking and the quantities. We can quote the support and the connection hardware together.
