Factory building and surrounding work areasAssembly line and transfer stationsGas spring batches separated into handling bins
01 / 06
Components & cylinder preparation
Cylinder tubes, machined components and welding equipment show the preparation stages before assembly. The selected dimensions and connections form the starting point for the finished gas spring.

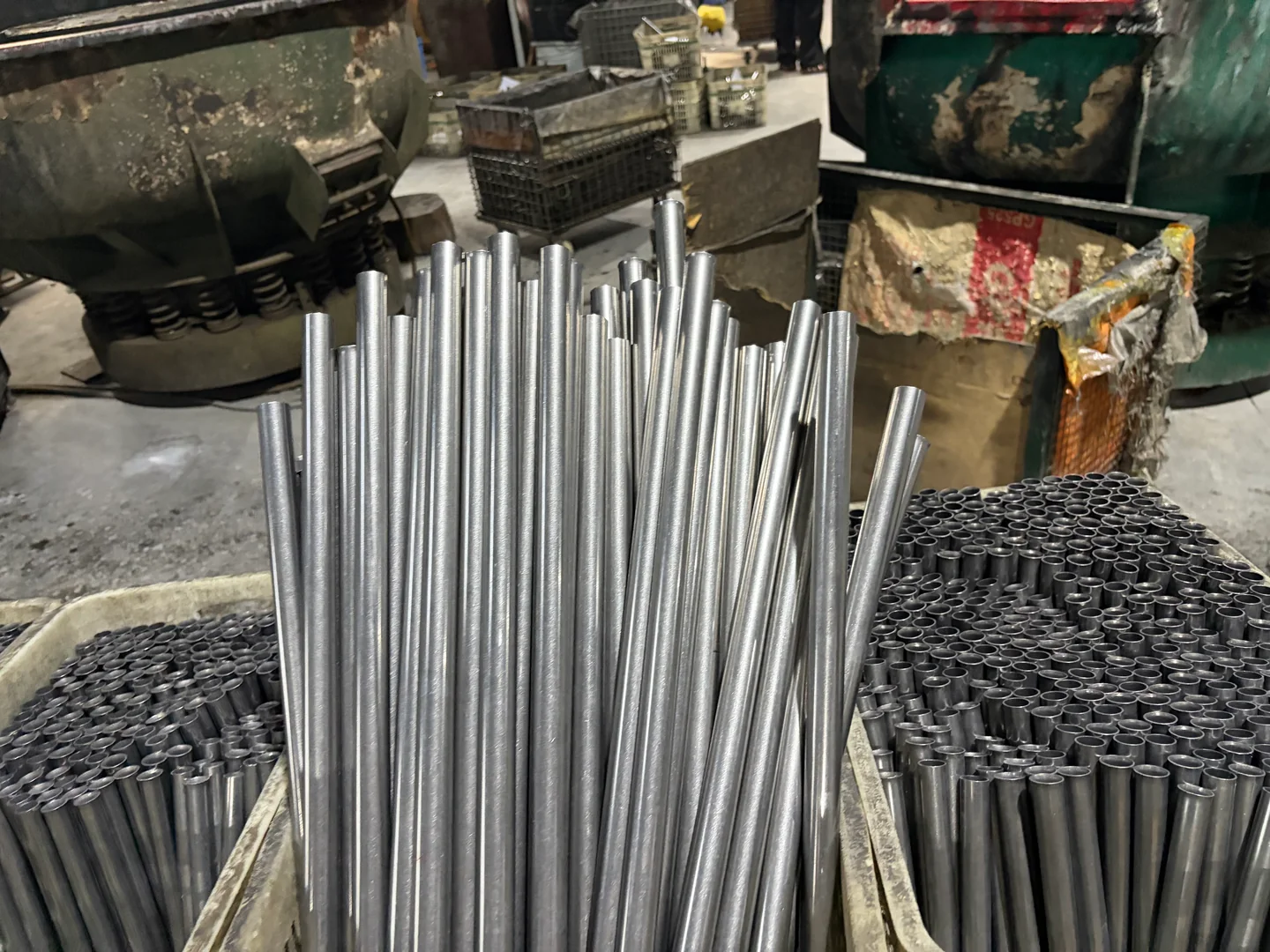

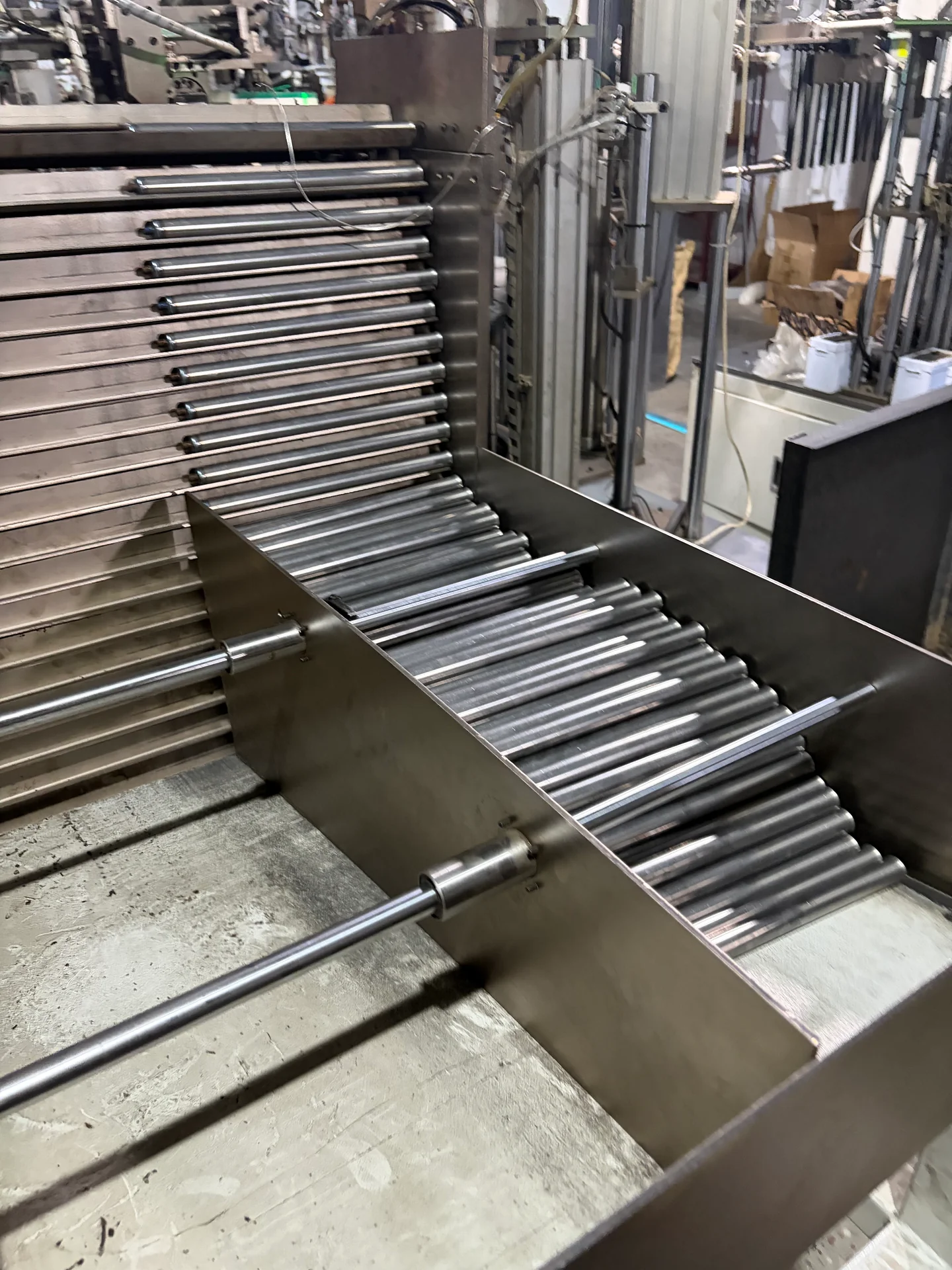

Cylinder tubes prepared for processingComponent machining workshopCylinder welding equipmentCylinder handling and transfer conveyor
02 / 06
Assembly & component feeding

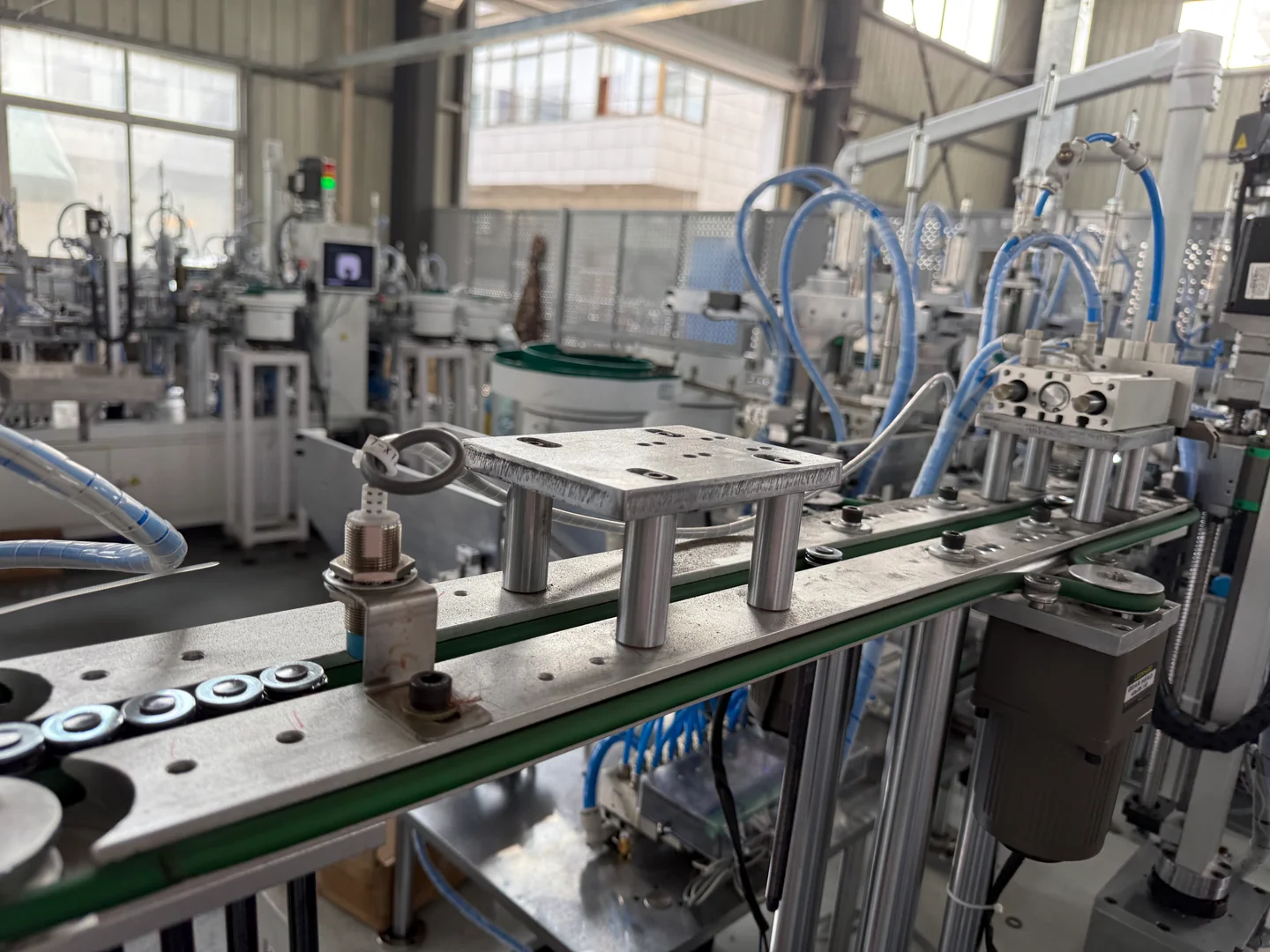

Assembly workstations, transfer stations and automatic feeding equipment bring the components together. The rod, cylinder and end connections need to remain consistent with the selected product specification.

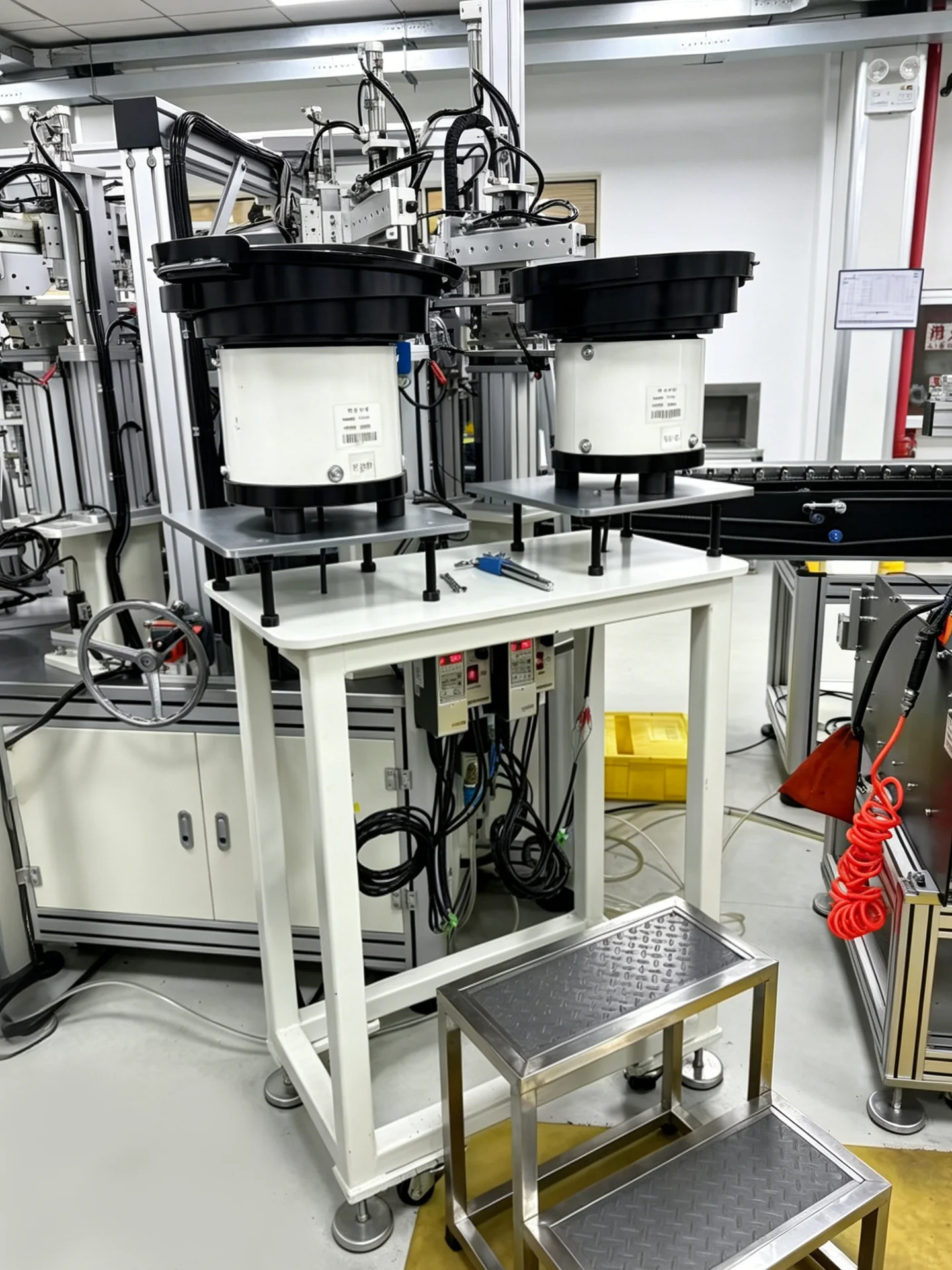

Assembly workstation and component handlingAutomated gas spring assembly equipmentAssembly line and transfer stationsAutomatic component feeding and assembly station
03 / 06
Force, stroke & movement checks
Force measurement equipment and stroke and cycle fixtures examine different aspects of performance. A useful result records the tested part, method, conditions and acceptance criteria.

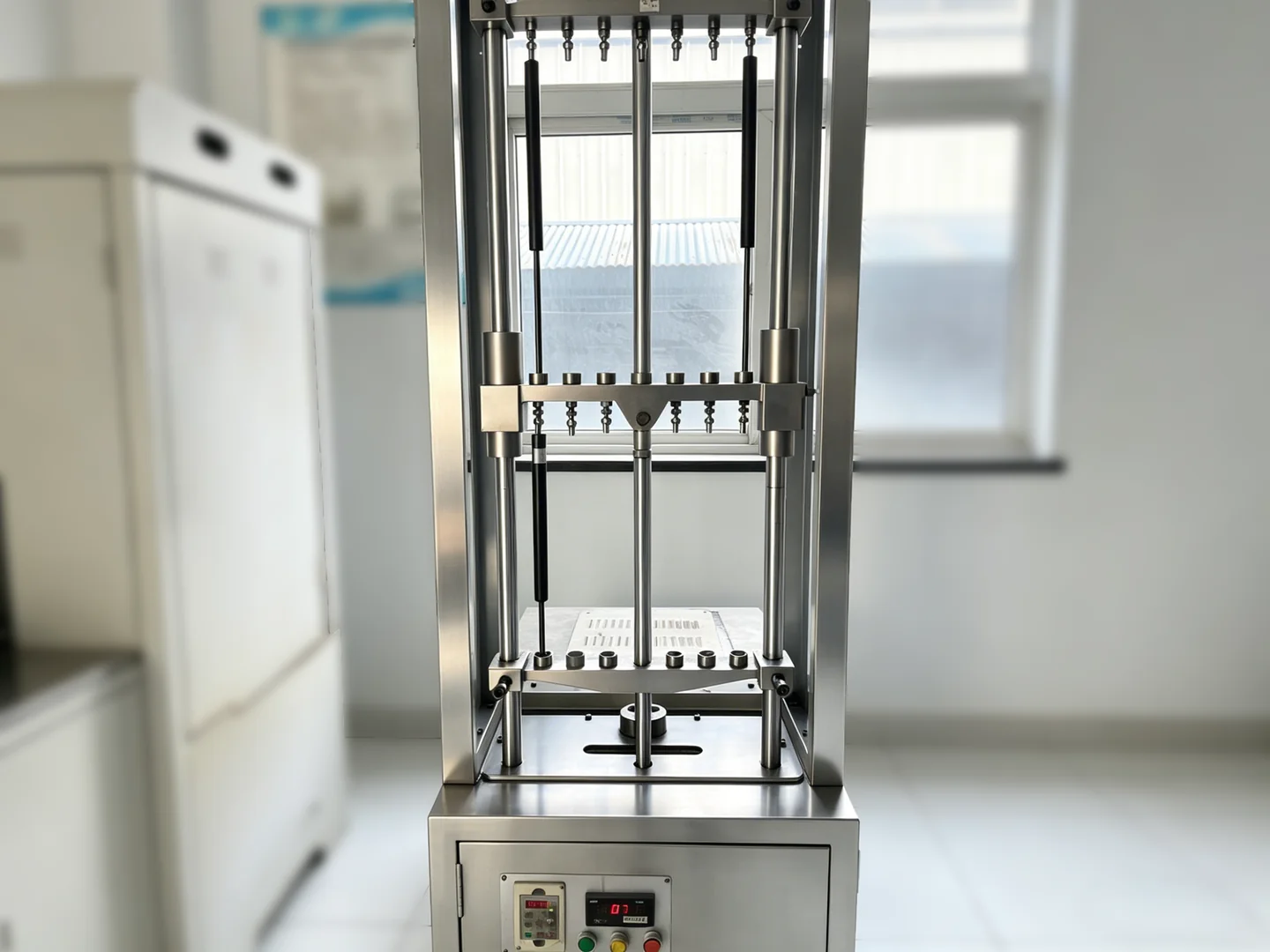

Force measurement equipmentCycle test fixtureStroke and length checking fixture
04 / 06
Finished products & batch handling

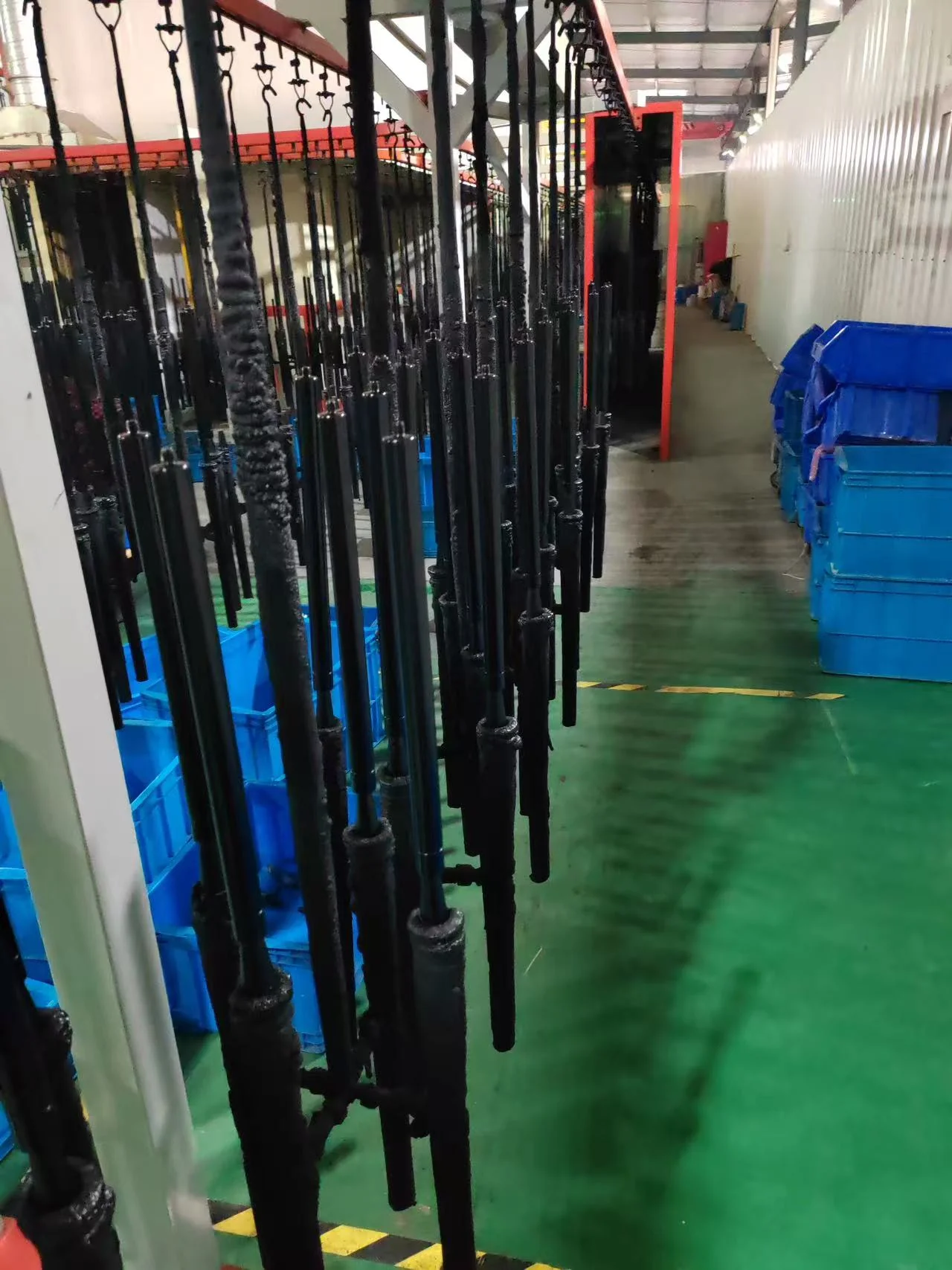

Hanging carriers and separate handling bins show how components and finished units move between stages. Clear identification and careful surface handling matter when similar product variants share a work area.

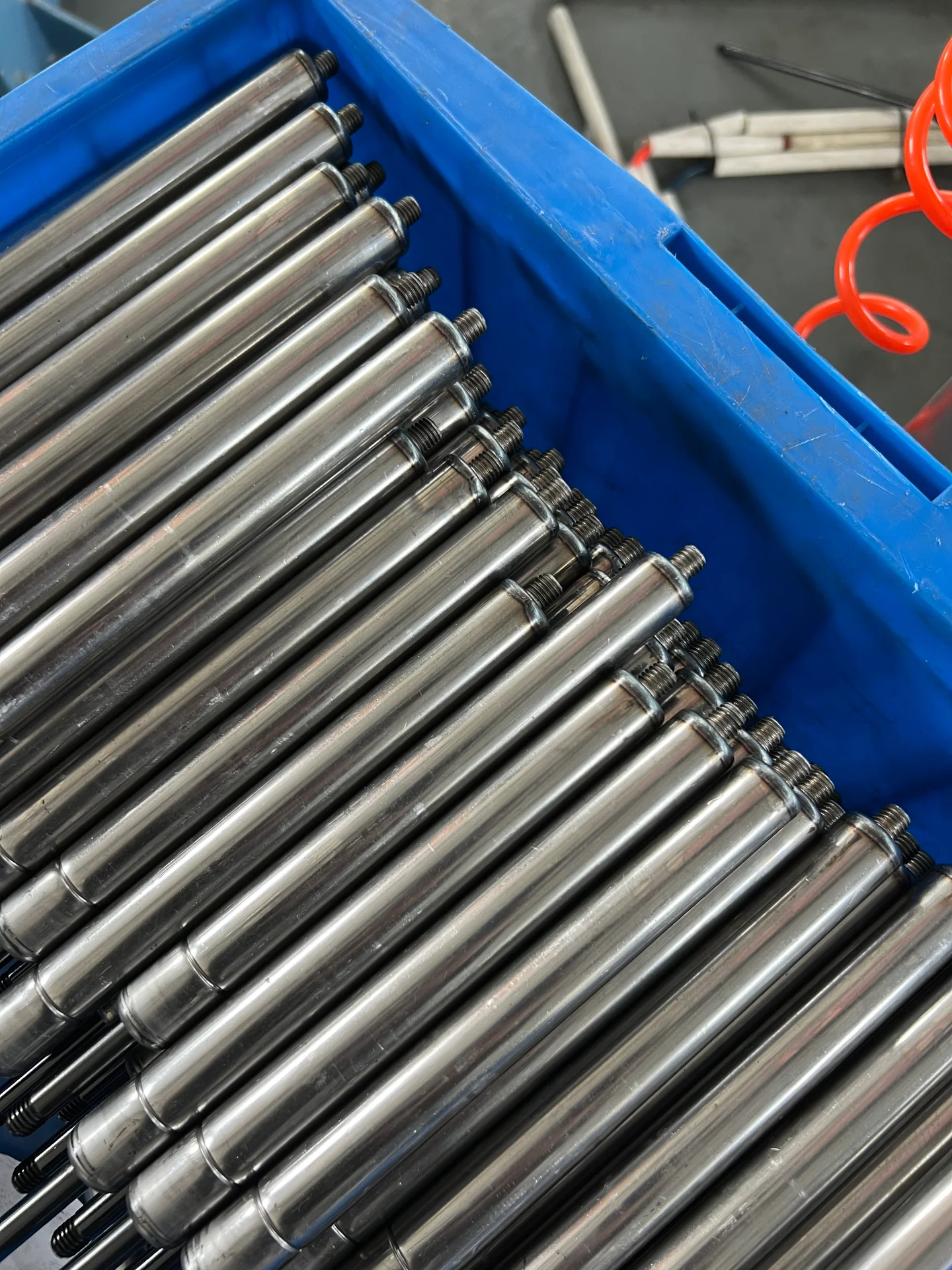

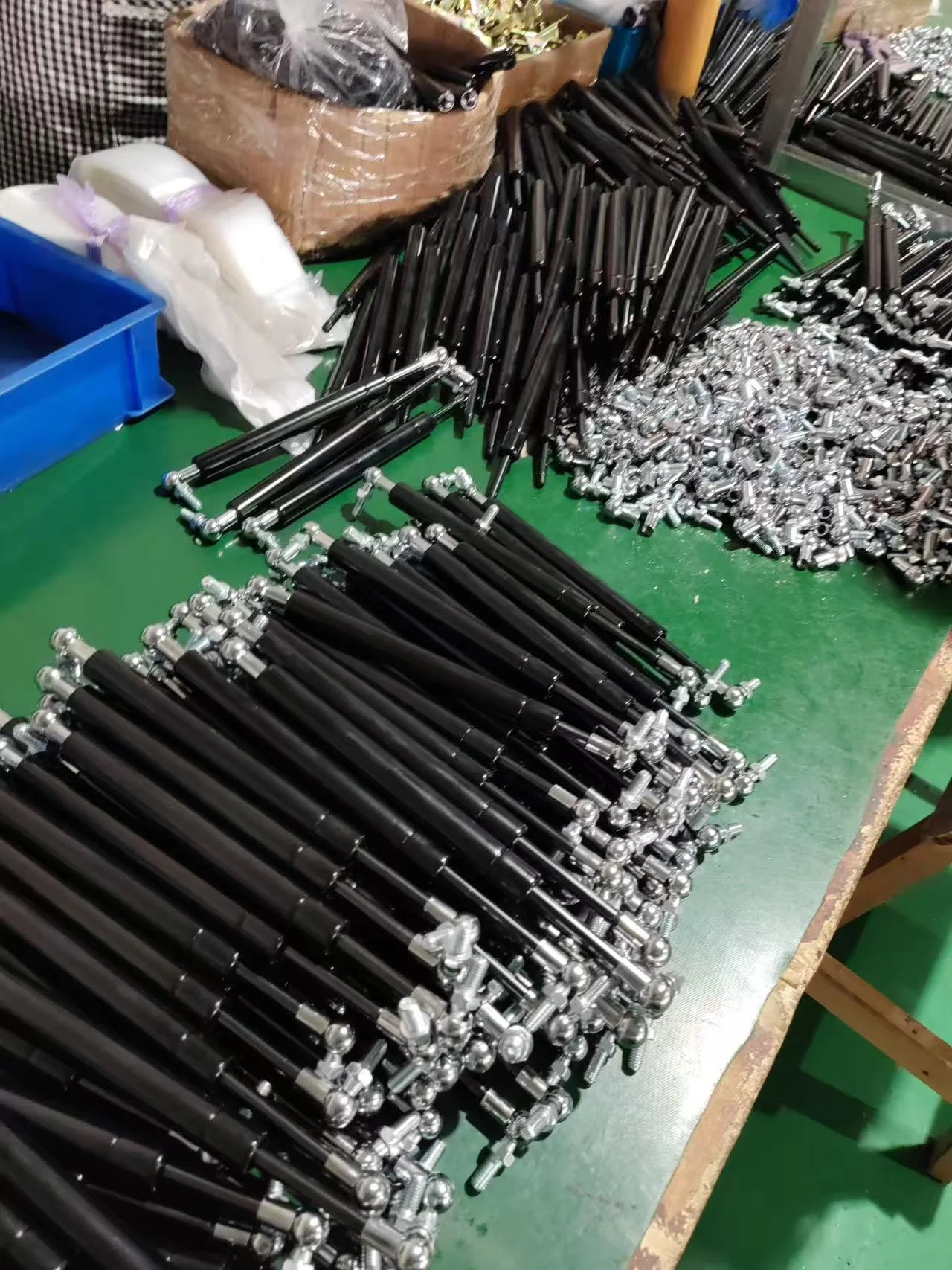

Coated cylinders on hanging carriersFinished gas spring units in a handling binGas spring batches separated into handling binsGas springs with ball-joint connections at an assembly station
05 / 06
Protective wrapping & carton packing
Individual wrapping and carton arrangements help protect products during handling. The packing specification should reflect the part size, exposed surfaces, quantity and transport requirements.

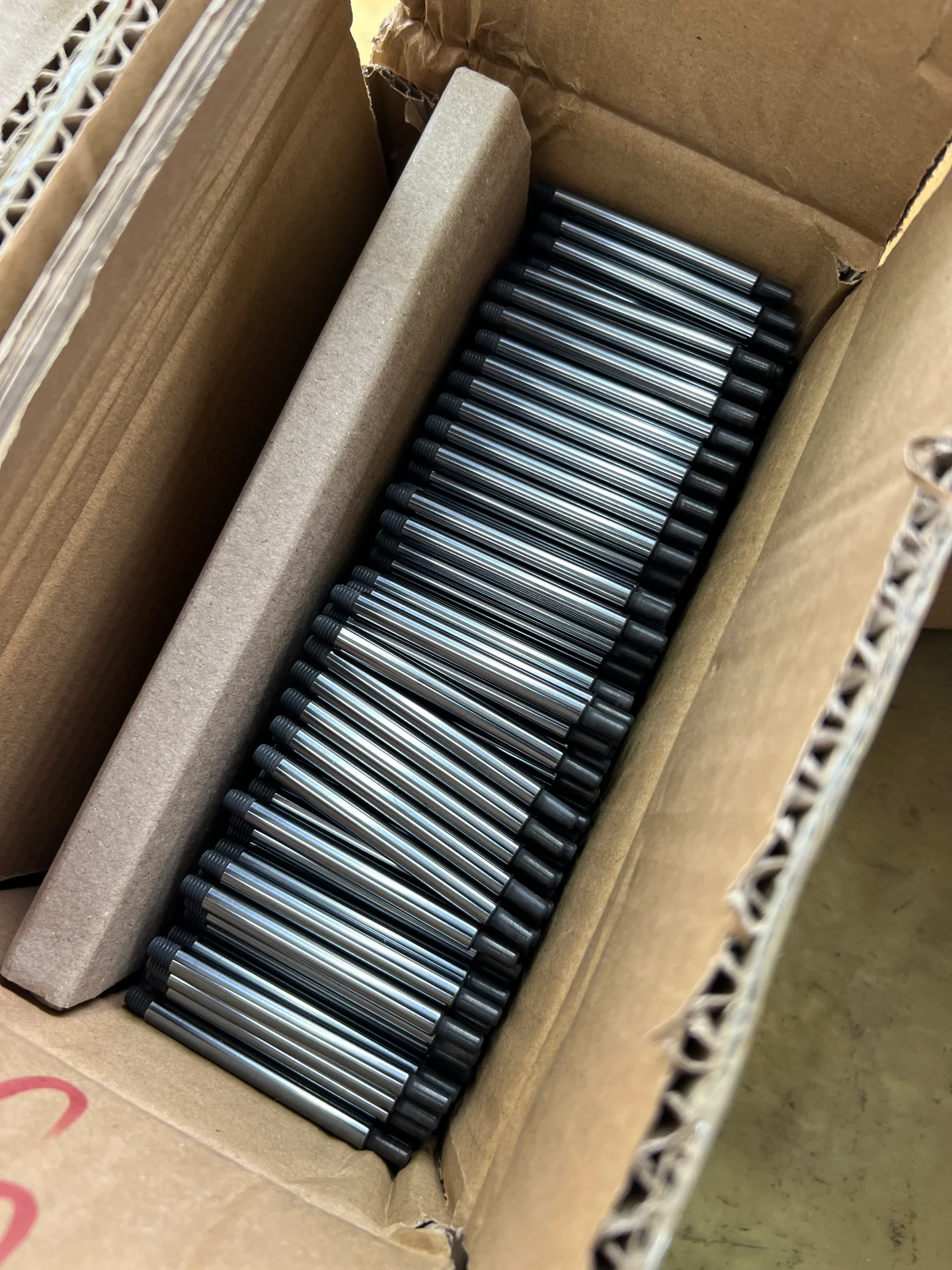

Gas springs with individual bubble-wrap protectionSmall cylinder components arranged inside a carton
06 / 06
Storage & dispatch preparation
Packed cartons are grouped for storage and dispatch. Product references, carton quantities and agreed delivery details help connect the finished order with the receiving team's requirements.

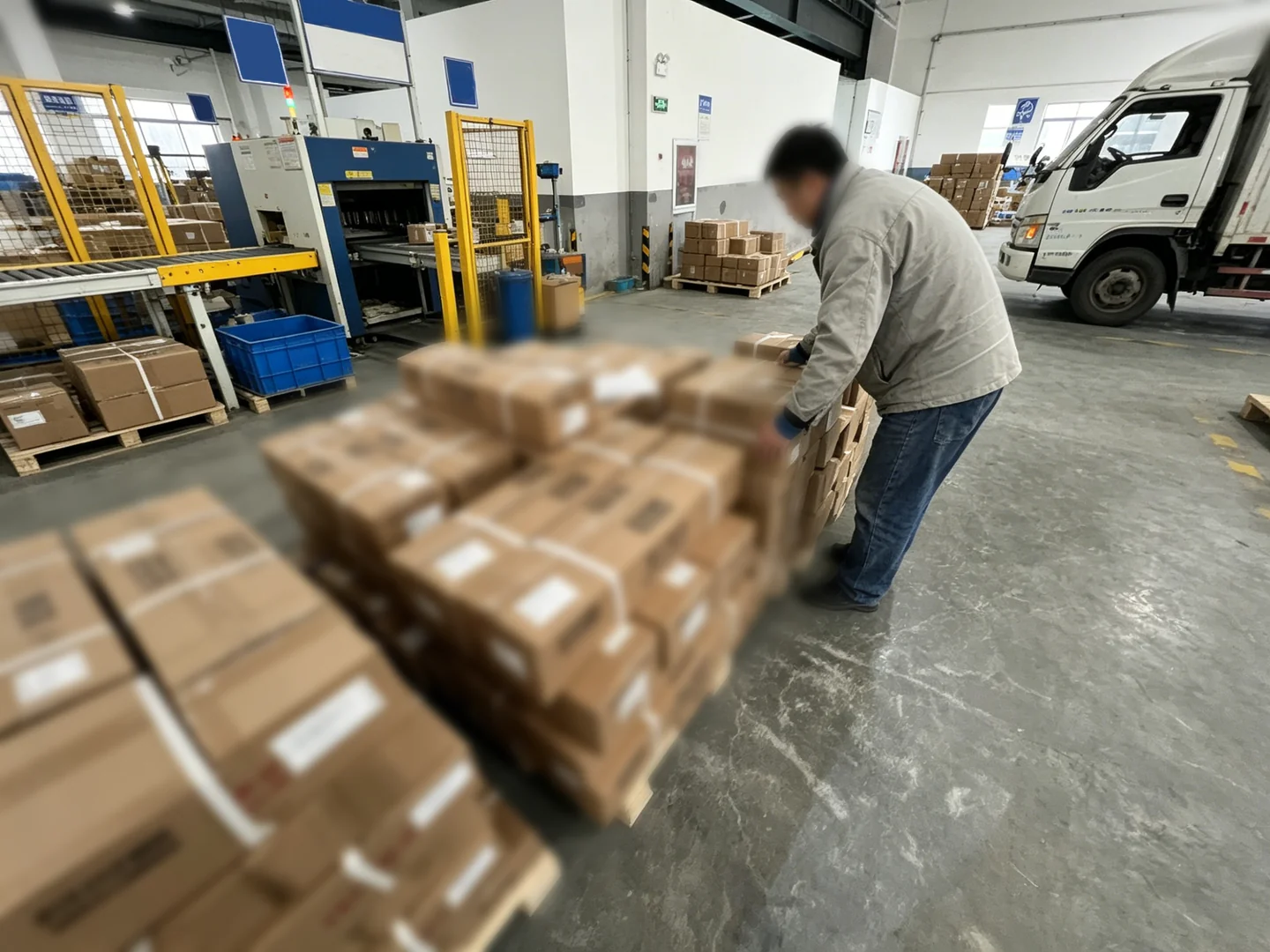

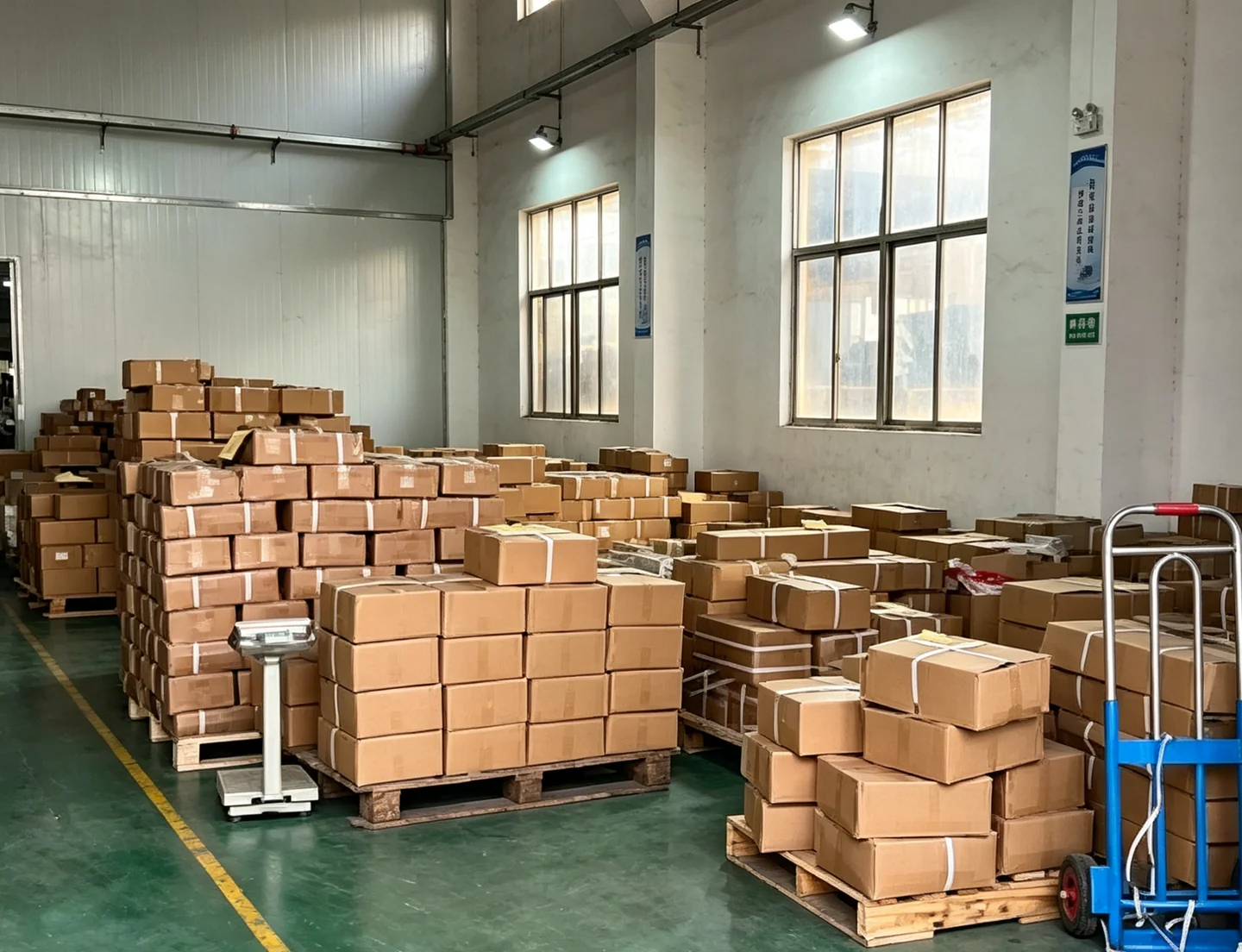

Packed cartons arranged in a storage areaCartons being prepared for dispatch
What a useful quality check covers
Dimensions & connections
Compare the specified length, stroke and end connections with the drawing. Review clearance and movement in the actual assembly.
Force & operating conditions
Record the force together with the measurement position, direction and temperature. A force marking alone does not define the load capacity of a hinged panel.
Movement & repeat use
Assess travel, smoothness and any specified lock-and-release function. Cycle results need defined conditions and acceptance limits.
Condition & packing
Review rods, bodies and fittings for visible damage, then check product identification and the agreed protective packing.
Horizon Gas Spring is operated by Tianjin Horizon Machinery Trading Co., Ltd. Production photographs illustrate the processes and equipment shown; the agreed product specification determines the process and inspection requirements.
