APPLICATION GUIDE
Construction & Agricultural Equipment
Gas springs for machine hoods, cab access and service compartments. Identify the equipment and the exact access panel before matching the support.
SUPPLY BY APPLICATION
Find the part of the product you work with.
| Application | Where it is used | Useful matching information |
|---|---|---|
| Construction equipment | Hoods, service covers and cab doors/windows | Machine model; panel location; existing number; dimensions and fittings |
| Tractors & farm machinery | Cab windows, roof hatches, engine covers and access panels | Equipment model; mounting position; force and hardware |
| Forklifts & handling equipment | Battery lids, engine covers and cab openings | Equipment model; cover location; old part; pin/ball interfaces |
| Commercial & special vehicles | Bus luggage doors, rescue-vehicle compartments and service hatches | Vehicle/body-builder model; door dimensions; installed supports |
MATCHING NOTES
Locate the gas spring on the machine.

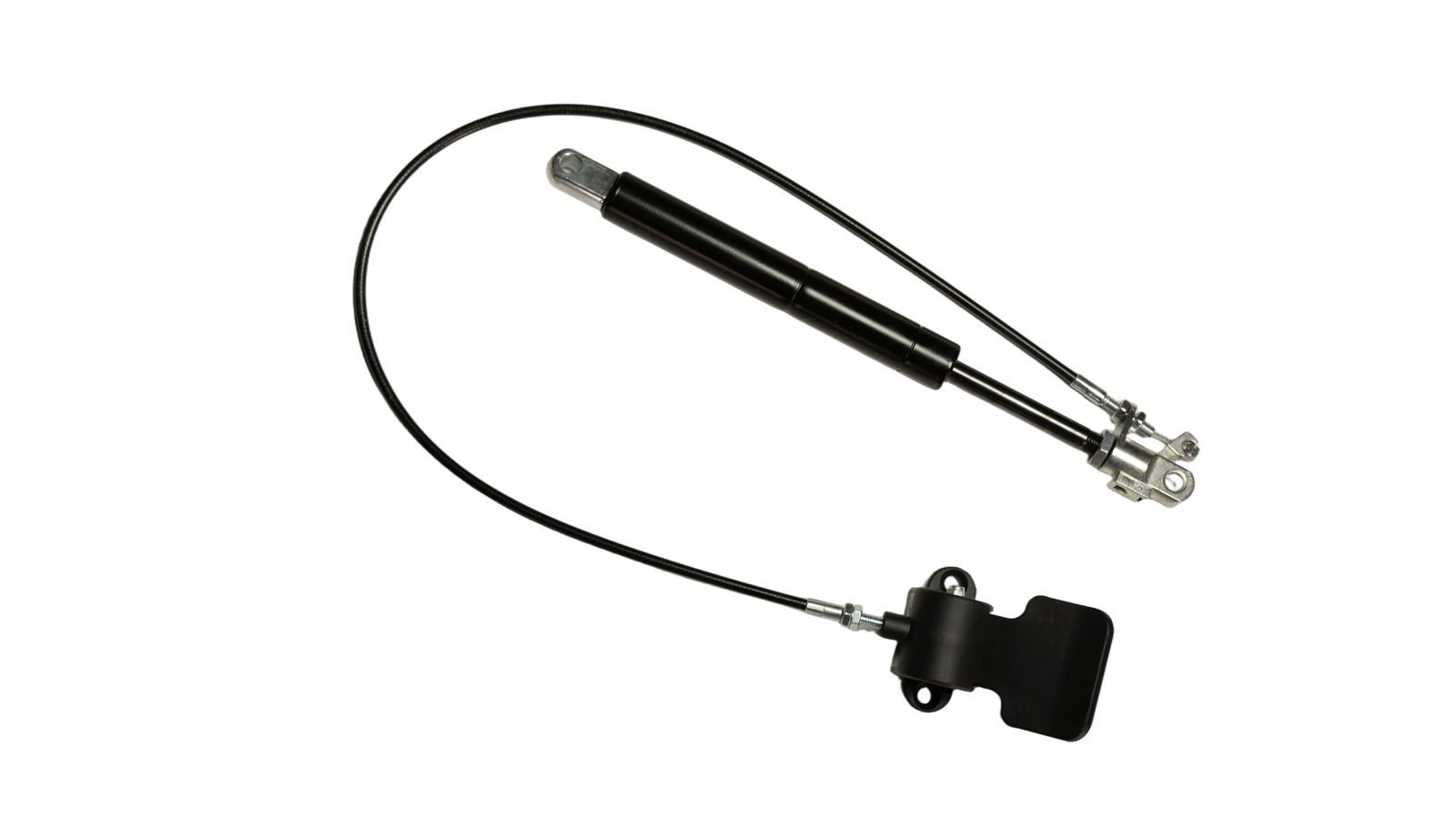

Hoods, cab doors, rear windows, battery lids and service covers use different supports. Record the equipment model, original number and exact position. Seat or steering-column adjustment can require a locking design; the main hydraulic lifting cylinder is a different component.
Published application & size references
| Application / reference | Published identification | Published dimensions / force | Quotation / source |
|---|---|---|---|
| John Deere Cab door - AL110629Identify by OE reference and installation position.General equipment examples: 6010, 6100, 6110, 6200, 6210, 6300, 6310, 6400, 6410Deere lists general compatible equipment; verify against the specific machine. Deere product length is not assumed to be mounting-center length. Equipment source ↗ | Stabilus 5B-1003JDOE reference: AL110629— | Force: 250 N / ≈56.2 lbf metal ball sockets | Quote reference Source ↗2021 agriculture guide |
| John Deere Rear window - AL114803Identify by OE reference and installation position. | Stabilus 4B-1004JDOE reference: AL114803— | Force: 130 N / ≈29.2 lbf metal ball socket / metal ball-socket stud | Quote reference Source ↗2021 agriculture guide |
| John Deere Roof hatch - AL160698Identify by OE reference and installation position. | Stabilus 4B-1006JDOE reference: AL160698— | Force: 220 N / ≈49.5 lbf ball socket / ball socket | Quote reference Source ↗2021 agriculture guide |
| John Deere Hood - AH161391Identify by OE reference and installation position. | Stabilus 3B-1001JDOE reference: AH161391— | Force: 740 N / ≈166.4 lbf thread / metal ball socket | Quote reference Source ↗2021 agriculture guide |
| Massey Ferguson Cab door - 3385316M91Identify by OE reference and installation position. | Stabilus 5B-2002MFOE reference: 3385316M91— | Force: 300 N / ≈67.4 lbf ball socket / ball socket | Quote reference Source ↗2021 agriculture guide |
| Massey Ferguson Hood - 3781196M1Identify by OE reference and installation position. | Stabilus 1B-2004MFOE reference: 3781196M1— | Force: 600 N / ≈134.9 lbf ball-socket stud / ball-socket stud | Quote reference Source ↗2021 agriculture guide |
Published references identify a matching request; they are not Horizon stock codes or an authorized-distributor claim. The quotation confirms the actual supplied assembly. Brand names are used for identification.
