THE PRODUCT RANGE

Gas Springs & Lift Supports

Six product families for automotive parts businesses, furniture makers and equipment suppliers. Choose a complete support, a spring-only component or connection hardware, then use the product details and application references to define your order.

Part references Compare dimensions

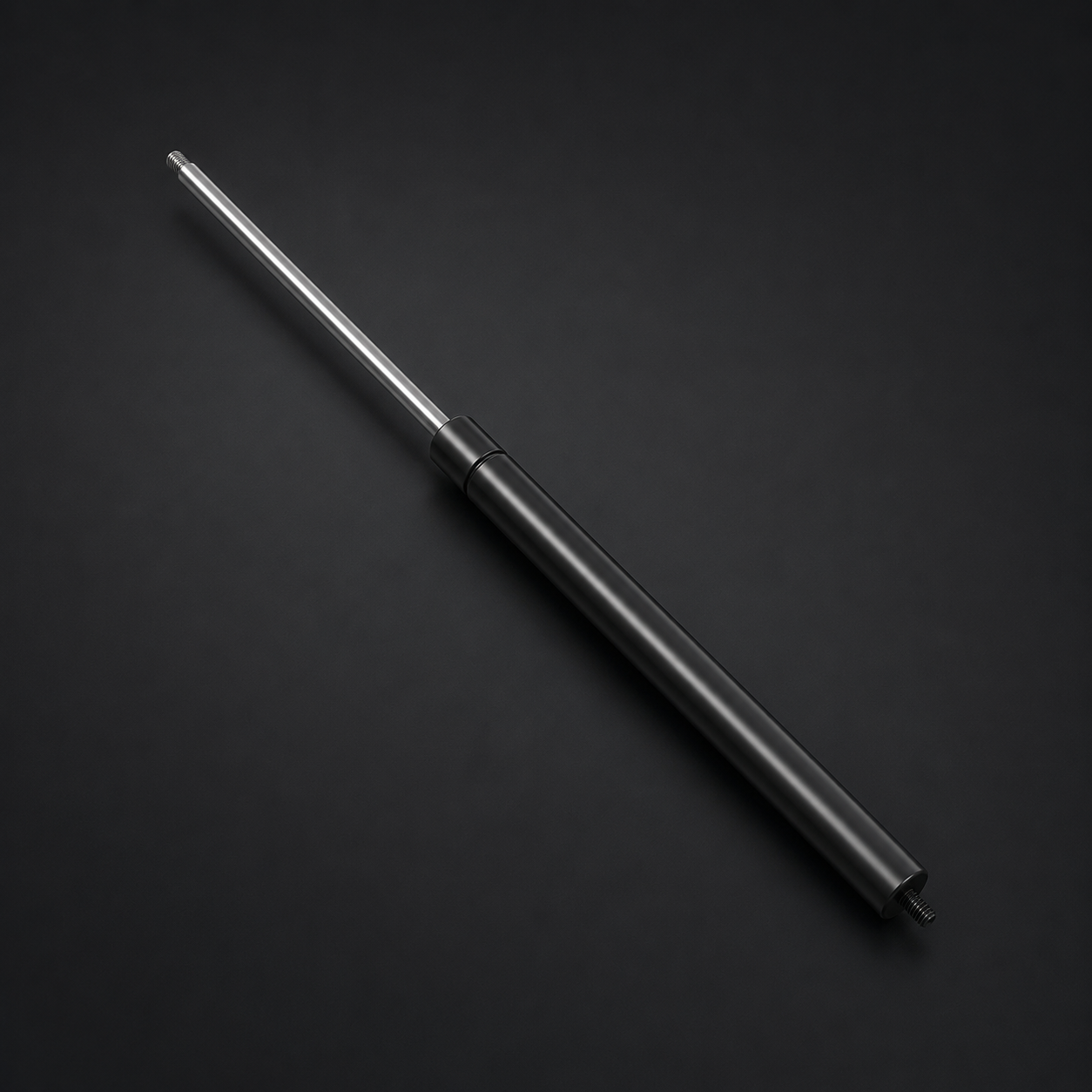

01 / LIFT SUPPORTOriginal Horizon gas spring with eyelet connections and piston rod

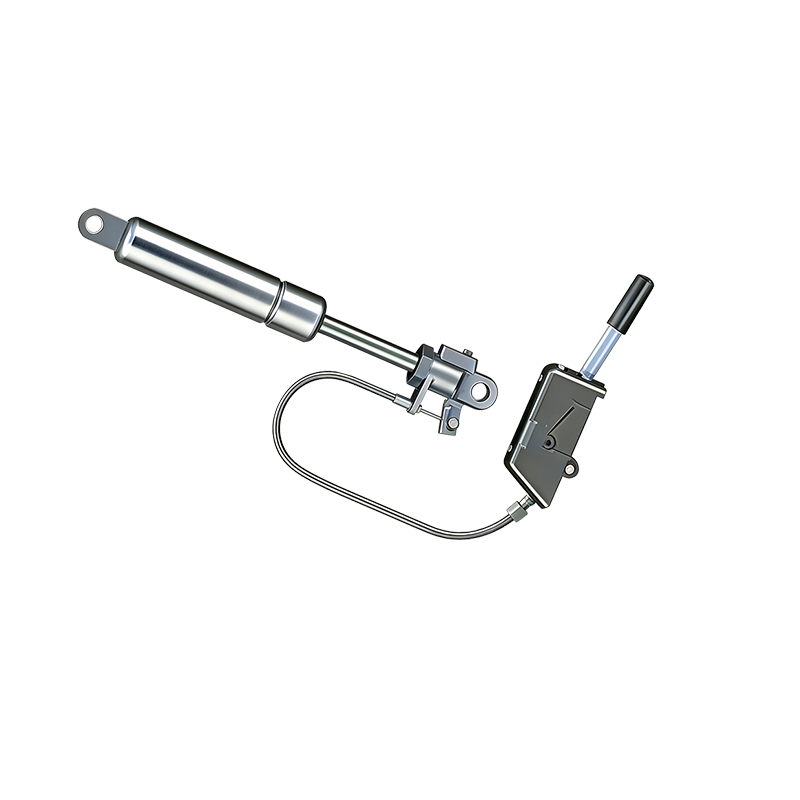

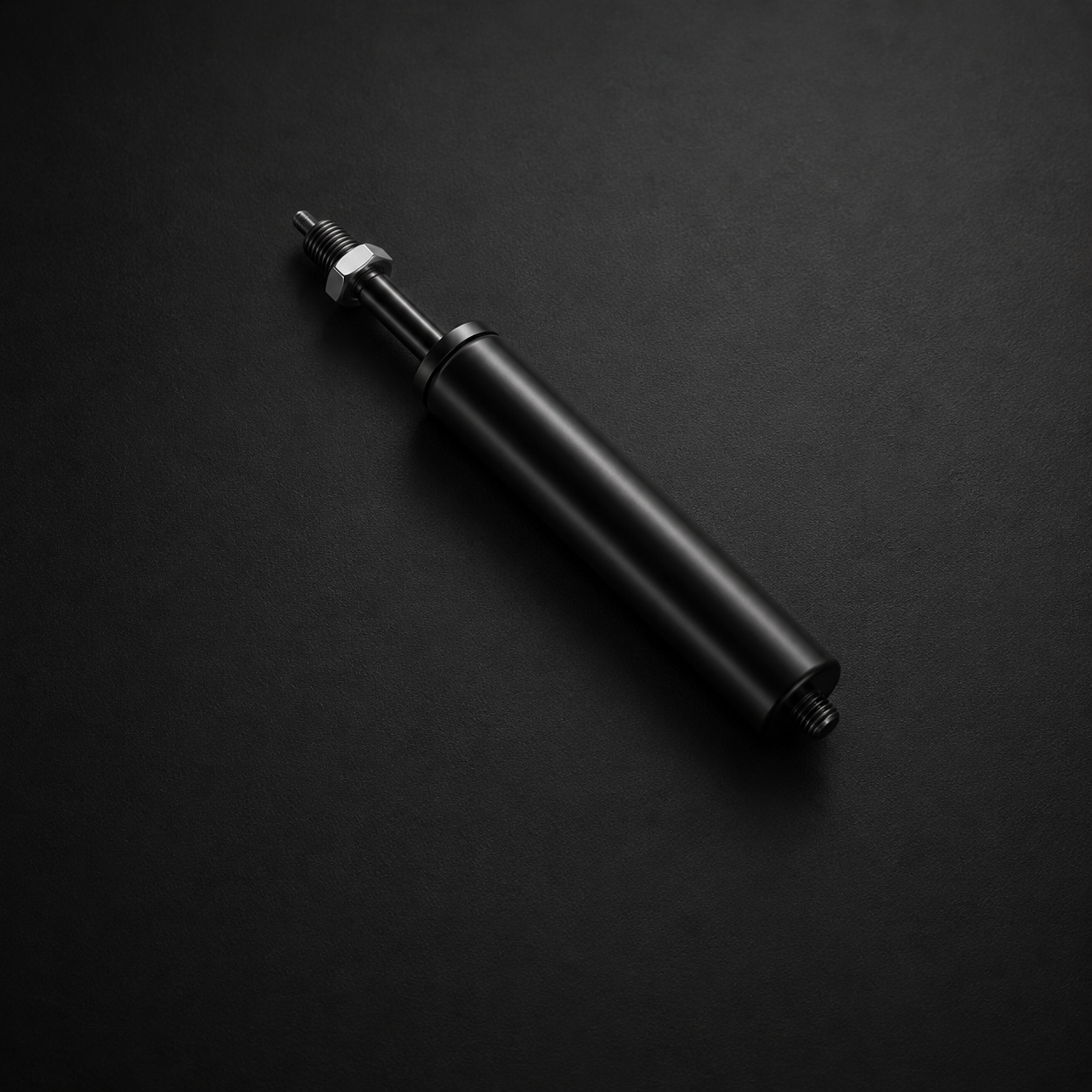

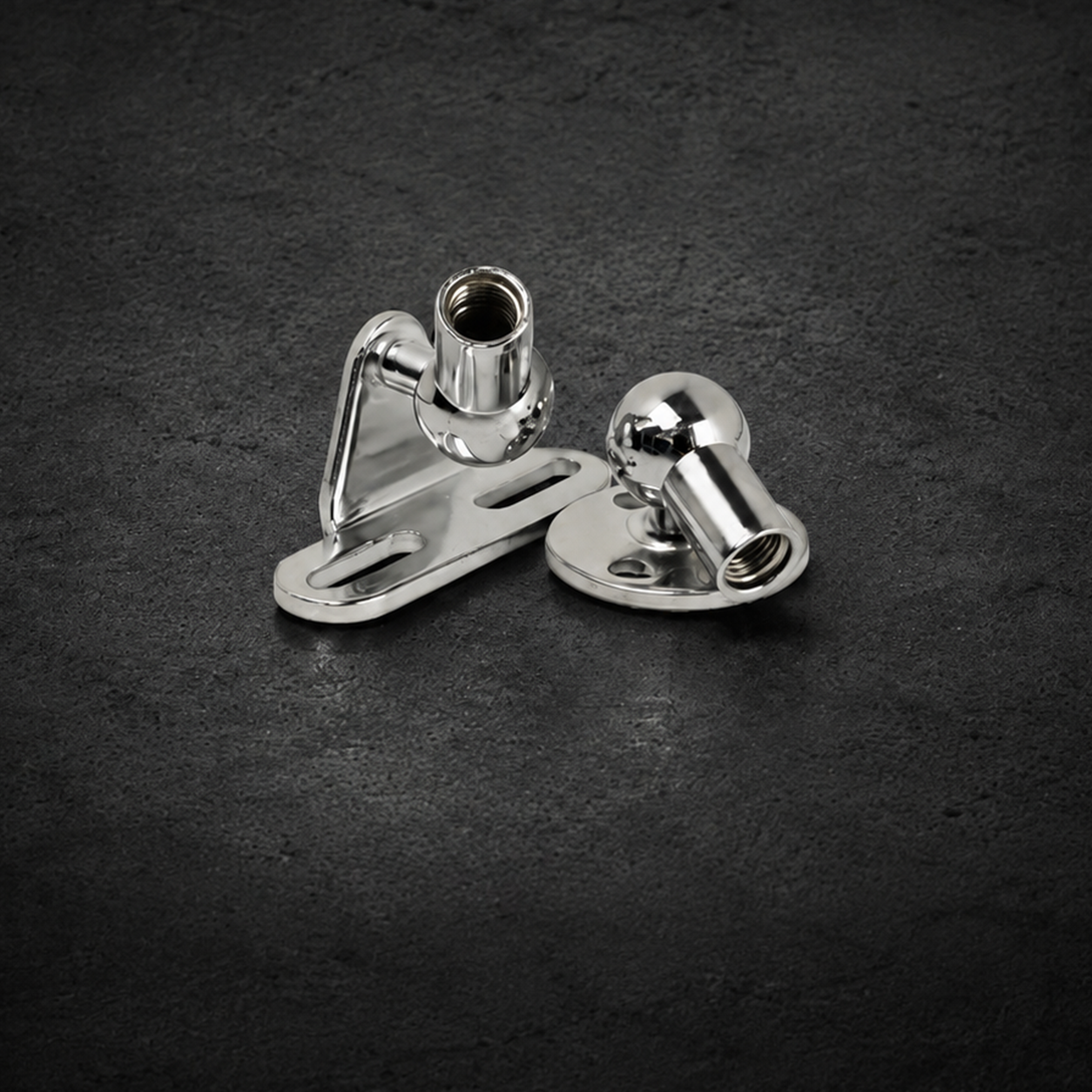

Lockable gas spring with remote cable release02 / CONTROL & ADJUSTMENT ↗Ball socket and threaded ball stud03 / CONNECTIONS ↗
LOOK CLOSER

The product, in detail.

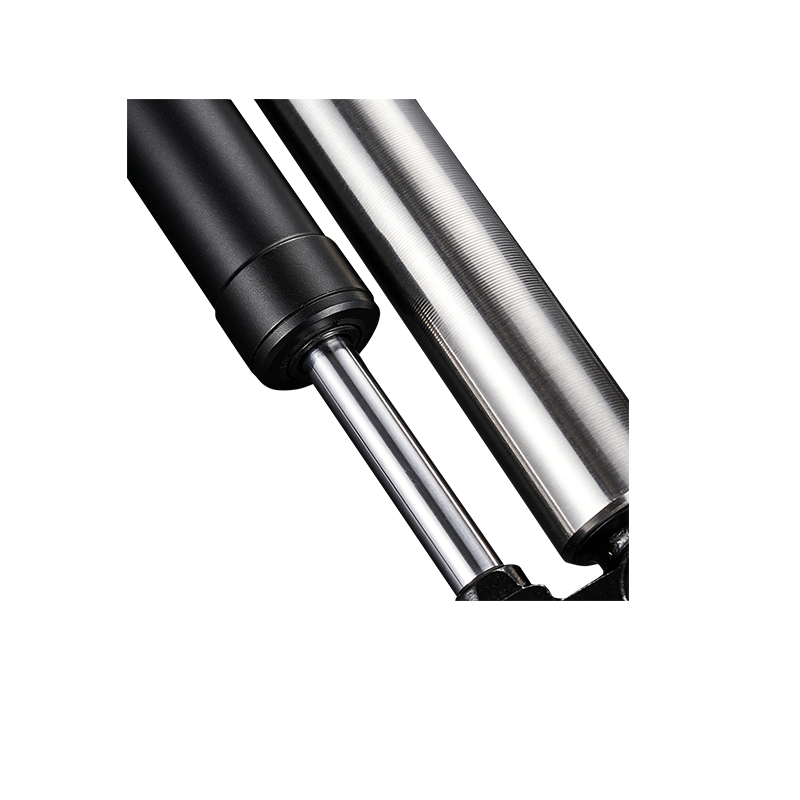

Original product photographs. Compare the body, rod and end connections.

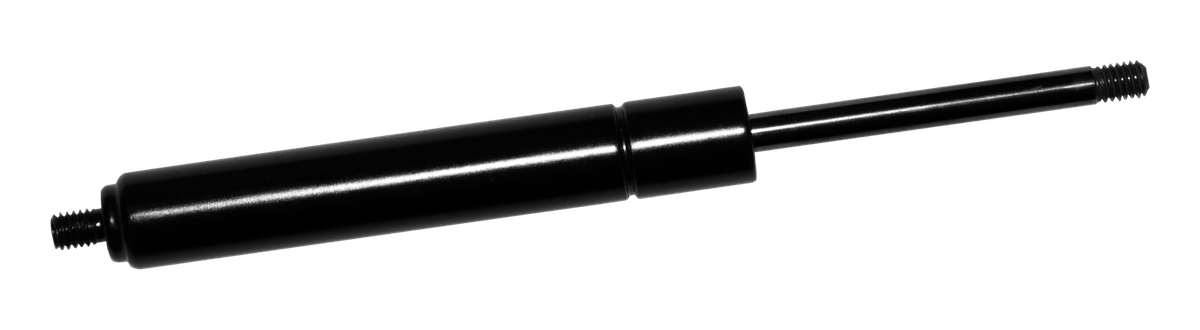

FULL PRODUCT VIEWComplete original product photograph with both ends visible

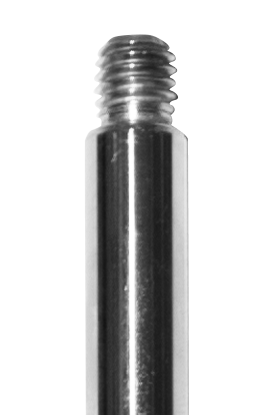

DETAIL / ROD ENDOriginal photograph detail: rod-end thread
DETAIL / BODY ENDOriginal photograph detail of the cylinder-end thread

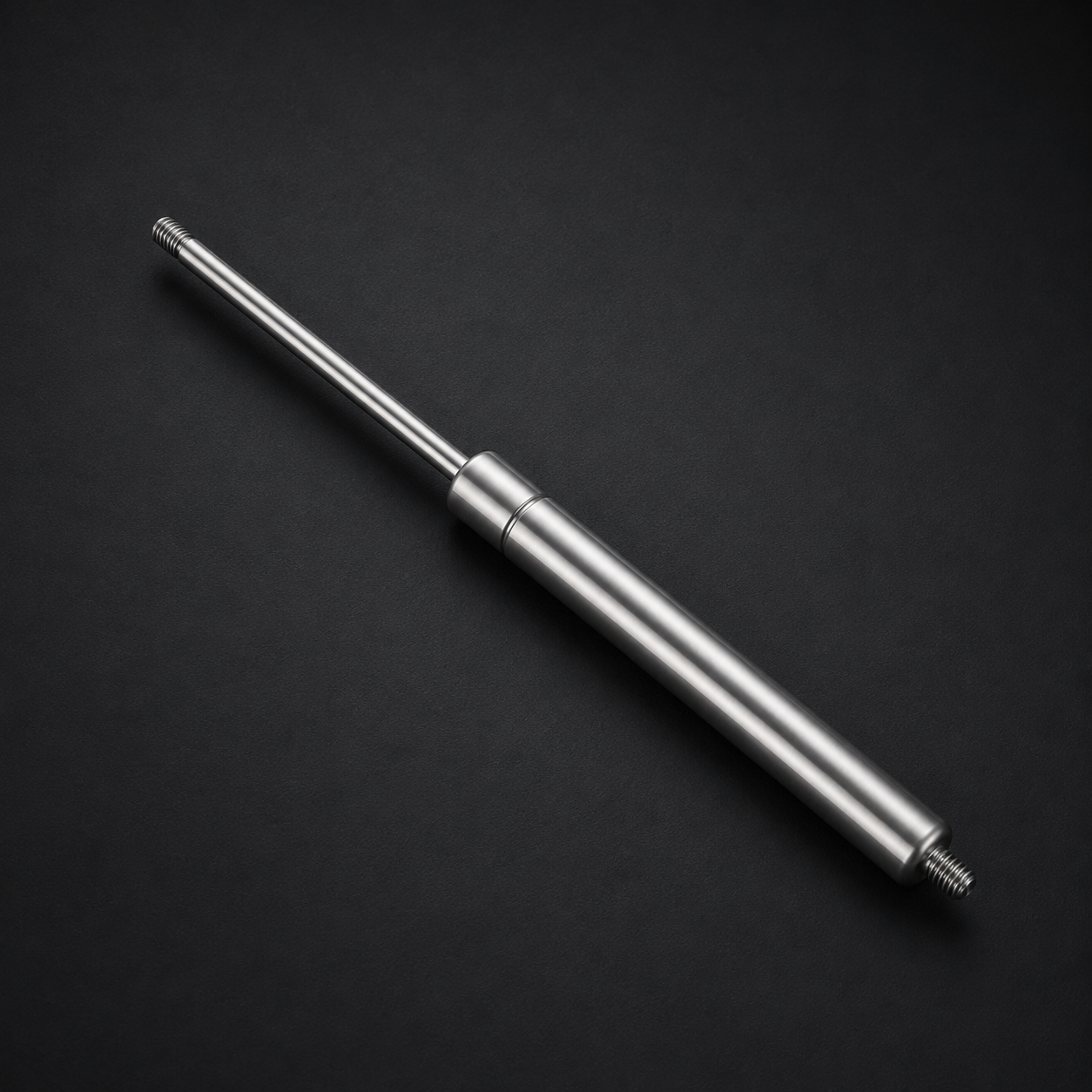

Threaded ends ↗

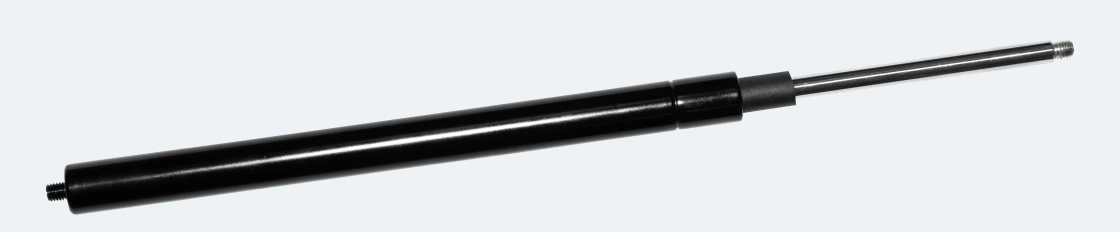

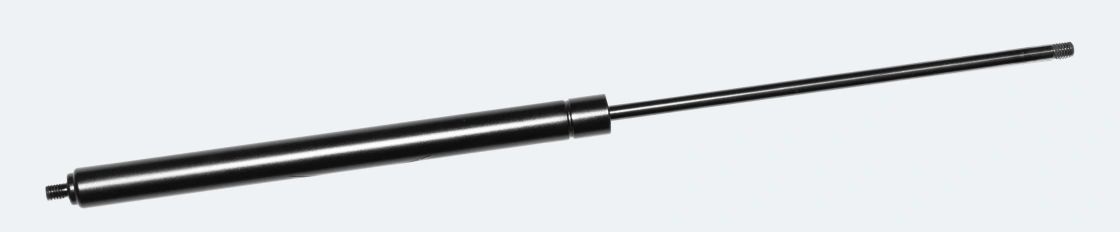

FULL PRODUCT VIEWComplete original product photograph with both ends visible

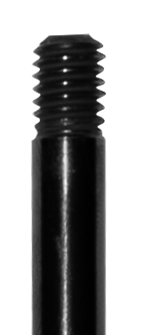

DETAIL / ROD ENDOriginal photograph detail of the rod-end male thread

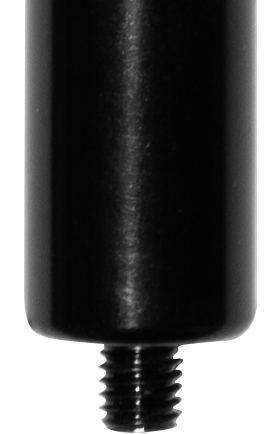

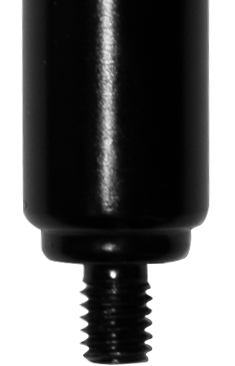

DETAIL / BODY ENDOriginal photograph detail of the cylinder-end male thread
Compact body ↗
FULL PRODUCT VIEWComplete original product photograph with both ends visible
DETAIL / ROD ENDOriginal photograph detail: rod-end thread
DETAIL / BODY ENDOriginal photograph detail of the cylinder-end thread
Slender profile ↗

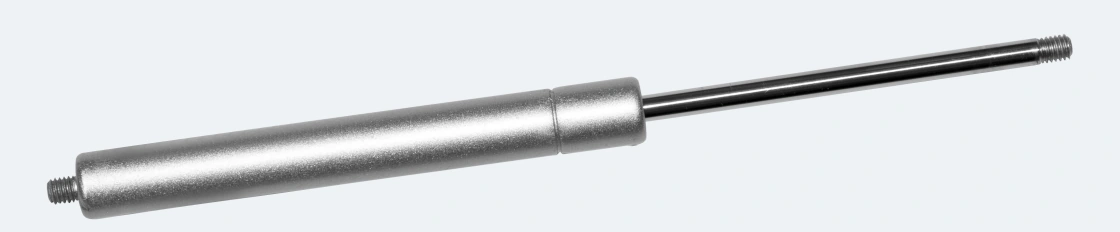

FULL PRODUCT VIEWComplete original product photograph with both ends visible

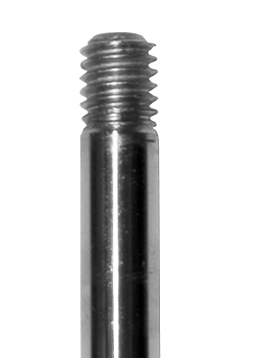

DETAIL / ROD ENDOriginal photograph detail: rod-end thread
DETAIL / BODY ENDOriginal photograph detail of the cylinder-end thread

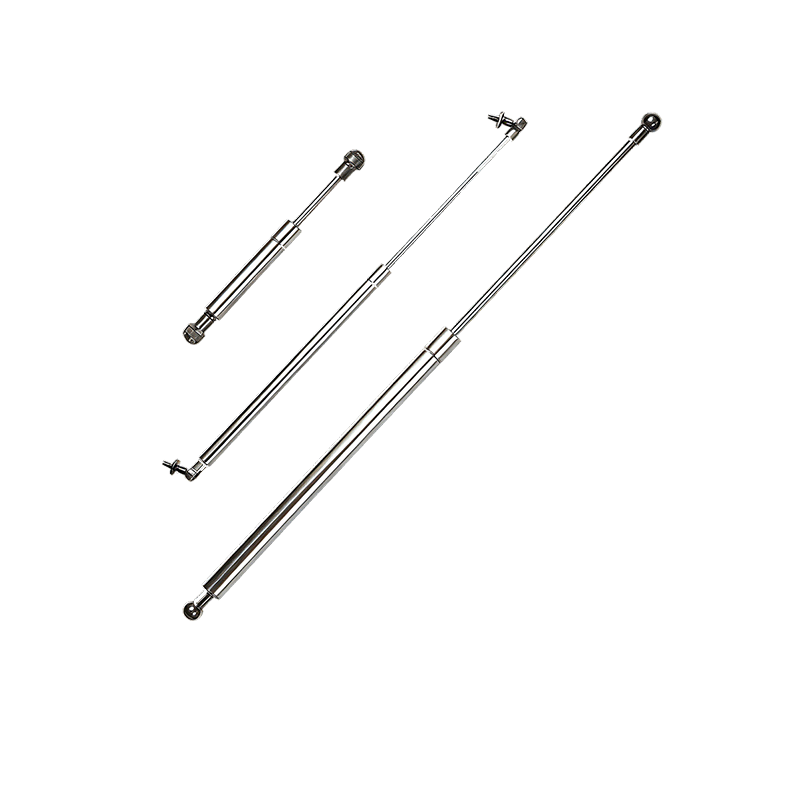

Silver finish ↗

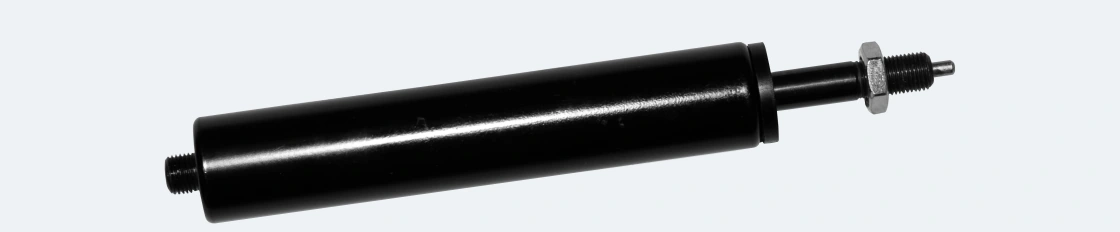

FULL PRODUCT VIEWComplete original product photograph with both ends visible

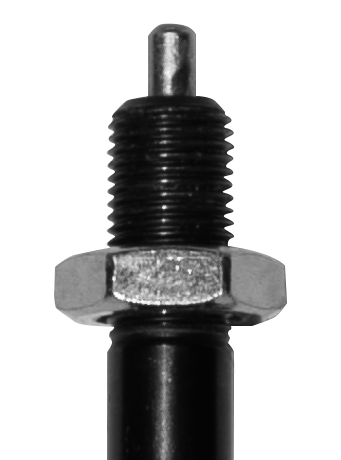

DETAIL / RELEASE PINOriginal photograph detail: release pin, thread and nut

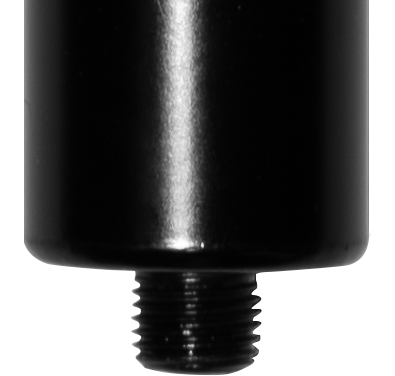

DETAIL / BODY ENDOriginal photograph detail of the cylinder-end thread
Release pin ↗

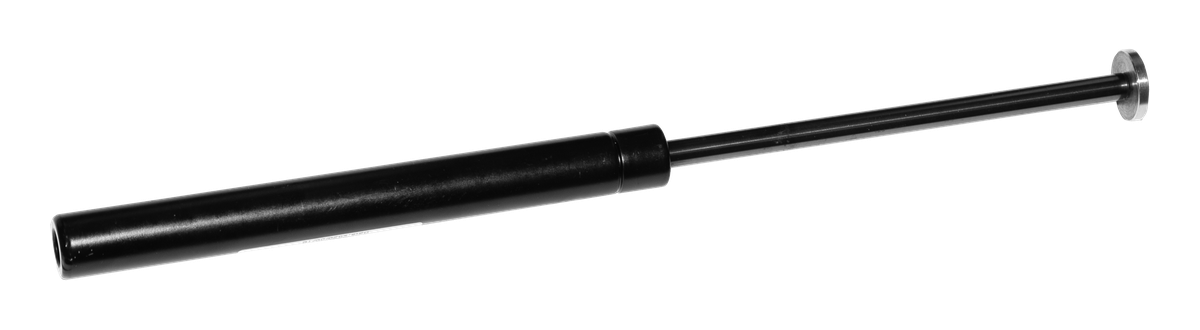

FULL PRODUCT VIEWComplete original product photograph with both ends visible

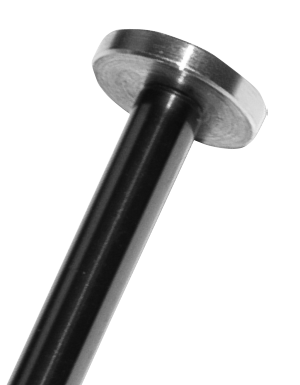

DETAIL / ROD ENDOriginal photograph detail of the round rod-end cap

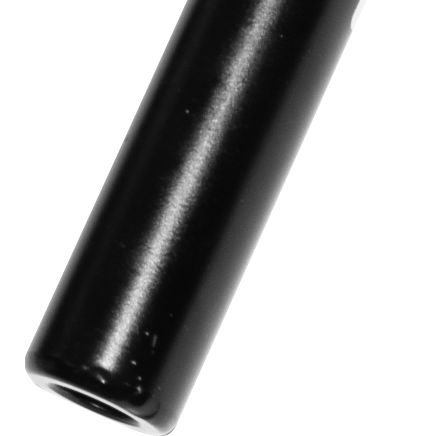

DETAIL / BODY ENDOriginal photograph detail of the cylinder end
Flange connection ↗

Exterior examples are not shown to a common scale. Appearance and finish alone do not identify force, function or material grade.

FIND THE FUNCTION

What should the component do?

Required motionProduct routeWhat identifies the right assembly
Lift or support a lid, hatch or coverCompression gas springLengths, stroke, force, rod/tube diameter and both ends
Adjust and hold a positionLockable gas springRelease control, locking behavior, holding load and dimensions

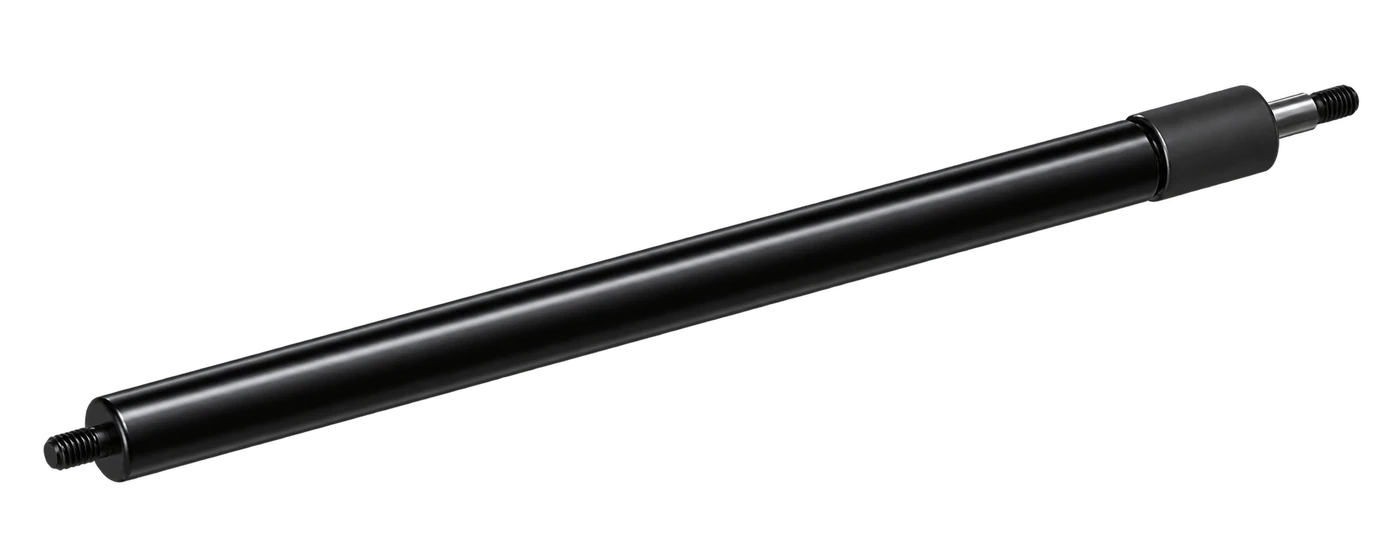

Pull toward the closed positionTraction gas springPull force, working stroke and mounting arrangement

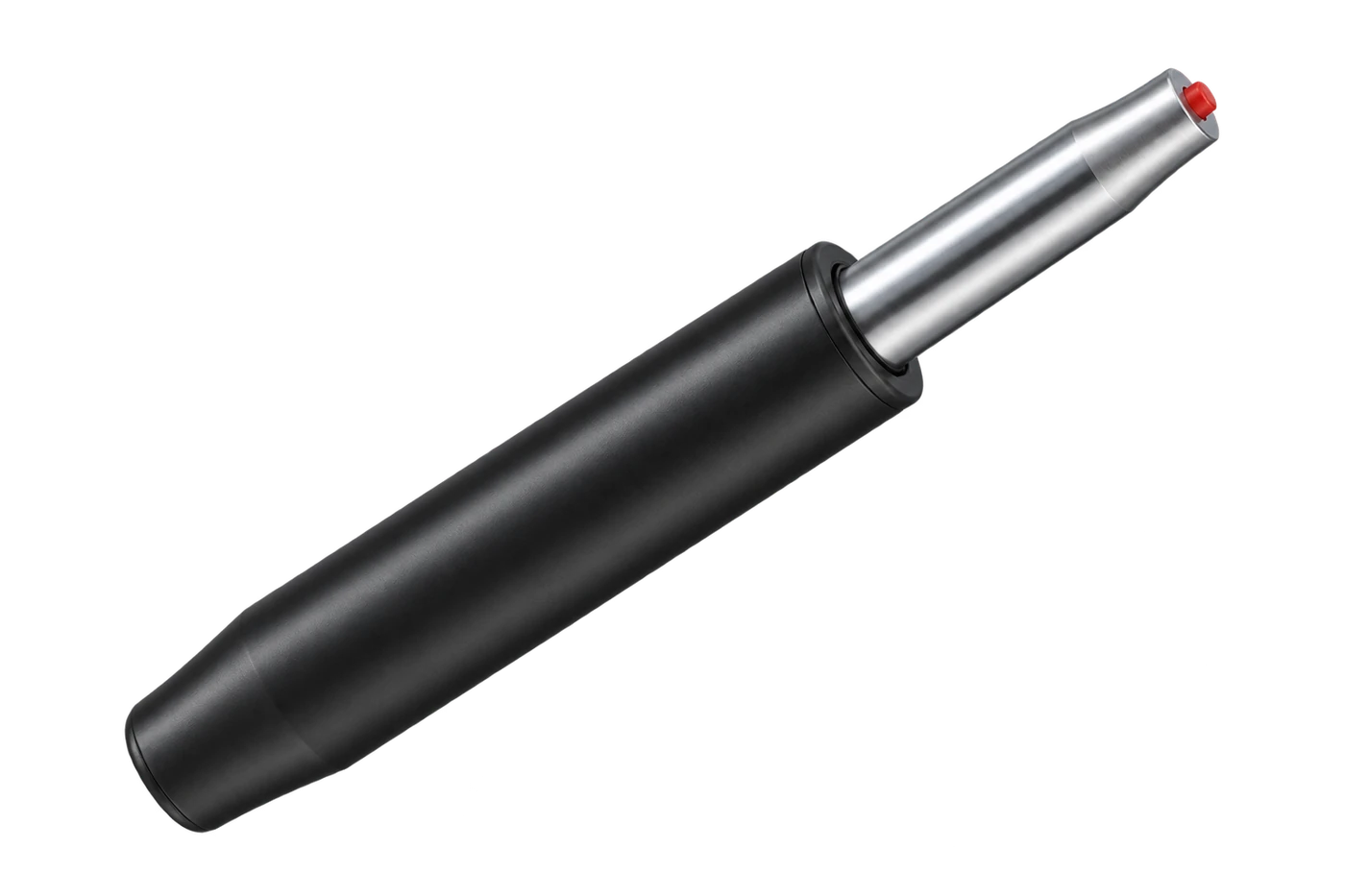

Adjust chair heightChair gas liftColumn lengths, stroke, taper/interface and release control
Connect the assemblyFittings and bracketsThread, ball or hole size, width, orientation and mounting offset
SPECIFY THE ASSEMBLY

The four details that travel with every quote.

01 / Dimensions

Extended and compressed mounting length, stroke, rod and tube diameter.

02 / Force & function

Force marking with units, lifting or pulling action, and any locking requirement.

03 / Connections

Both end fittings, threads, hole or ball diameter and bracket geometry.

04 / Purchase

Part reference, quantity per item, destination and packing requirements.

YOUR NEXT STEP

Have a part number, dimensions or a parts list?

Send the reference and quantity for each item. We will match the requirement and prepare a quotation for your order.

Request a bulk quote
